13) Remove temporary jumper LCEADON2 XM3A/1-3.
14) Run car to location where you can access the car roof.
15) Run car on top of car inspection to location where safeties set.
9) Install temporary jumper LCEADON2 XM3A/1-3
to jumper the electrical overspeed switch.
10) Remove lock out tag and turn ON controller
power.
11) Run the car down on machine room inspection
until the safeties reset.
• Run the car down no more than two feet.
It may be necessary to turn on enable
traction test to give an additional boost to get
car off safeties. Traction test resets after each
start. Several attempts may be required to get
car off safeties; traction test must be set
12) Reset governor as follows:
EcoSystem MR®
• OL100 governor: Use lever provided with
governor to reset mechanical jaw. Manually reset
electrical overspeed switch.
• OL35 governor: Mechanical portion automatically
resets when car runs up. Manually reset electrical
switch.
MRL:
• Mechanical portion resets automatically when car
runs down.

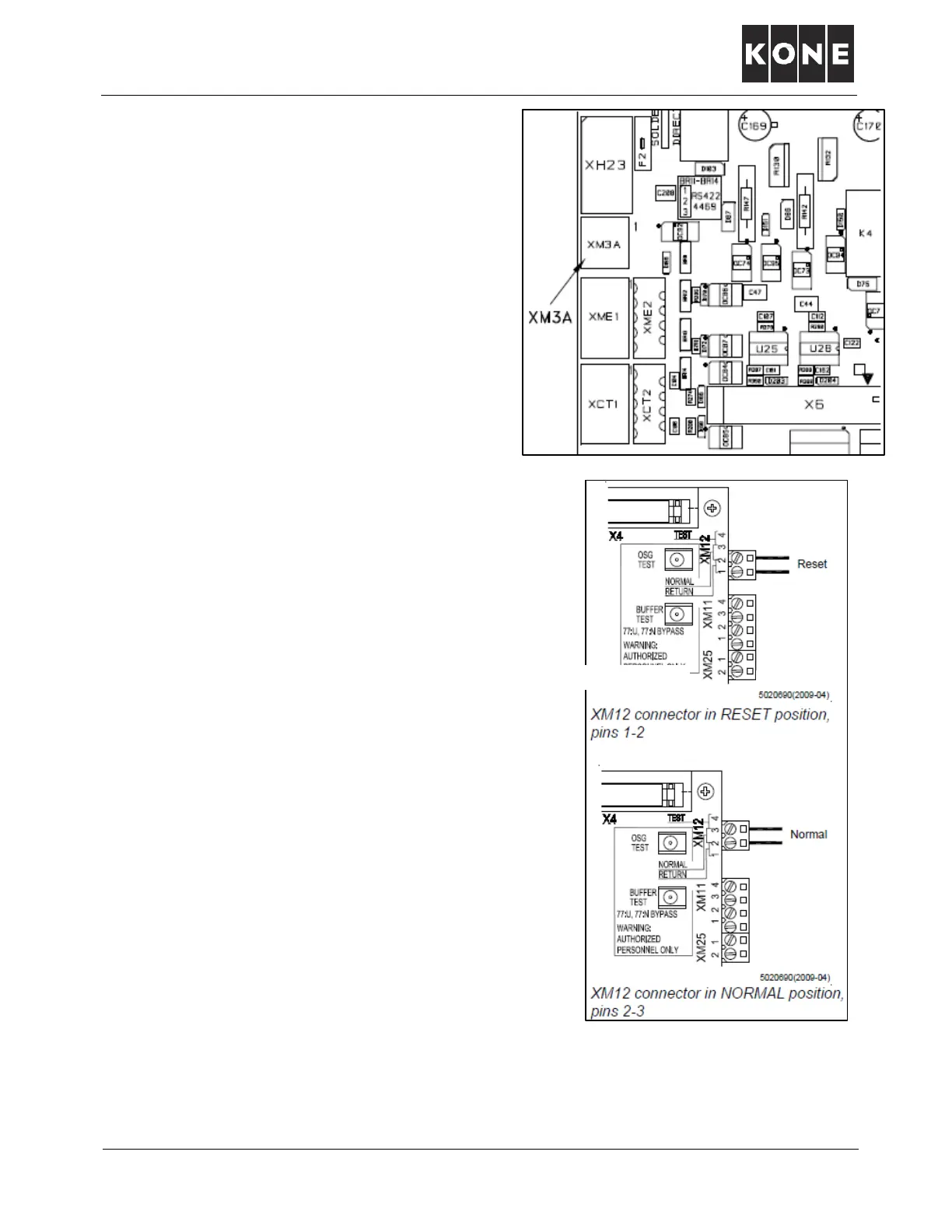

• Locate XM12 2-pin connector for counterweight
governor. Plug connector into XM12/1-2 RESET
(RETURN) position and push OSG test button.
• Unplug counterweight governor XM12 2-pin
connector and reinstall XM12 2-pin connector
from car governor to XM12/2-3 NORMAL
position.
