6) Run elevator DOWN on inspection and verify that safeties hold load and machine either slips
traction or stalls to determine if set was successful.
7) Check that car has stopped level.
8) Reset governor and safety by running elevator UP on inspection from machine room.

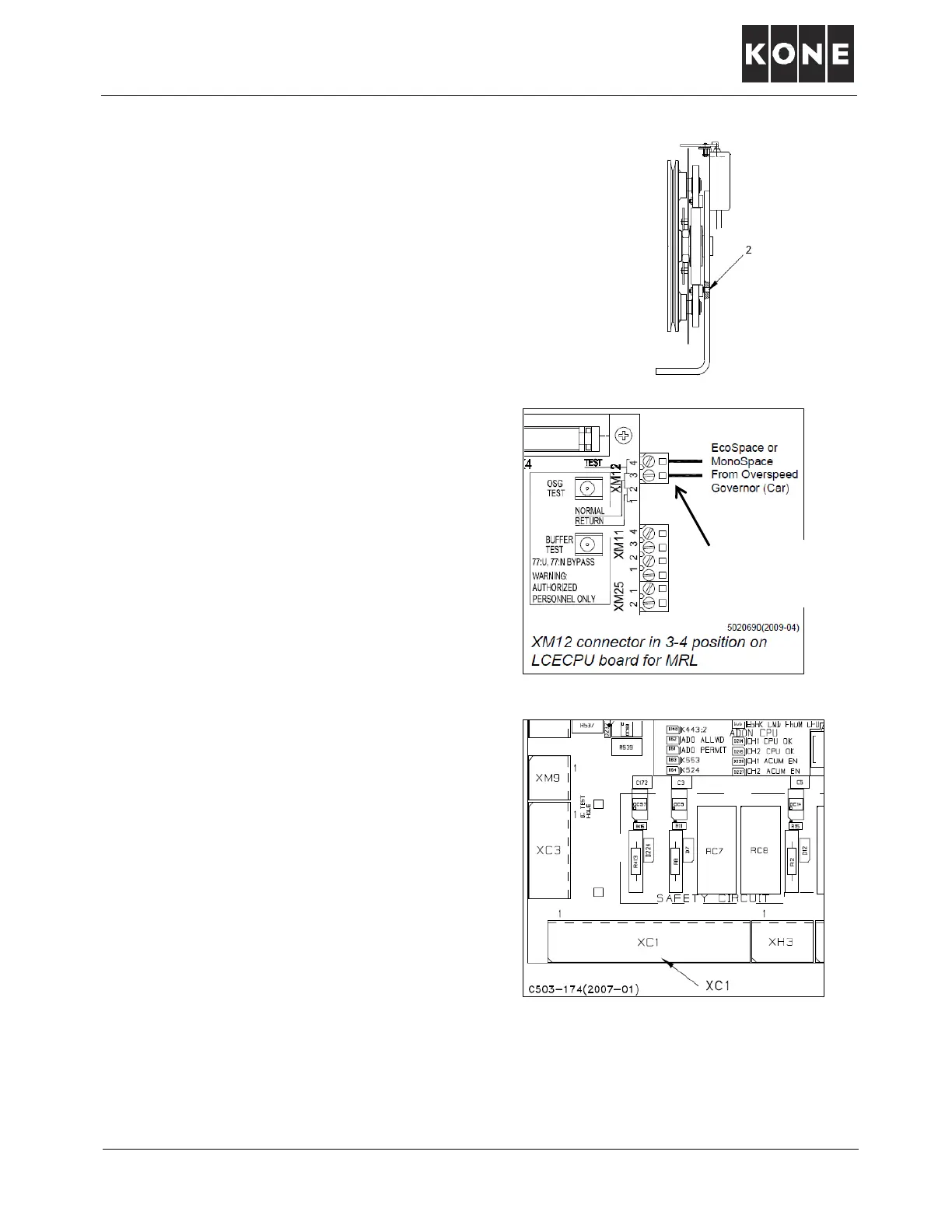

OL35 governor
XM12 connector in 3-4
position on LCECPU
board for MRL
• OL35 governor:
While car is running down, push screwdriver through
hole (2) in side of governor until governor sets.
b) MRL
• Move 2-pin XM12 connector on
LCECPU to test, 3-4 position.
• With car running down, push OSG TEST
button until governor sets.
5) Temporarily jumper safety plank switch by
jumpering LCEADON2 XC1/3-5.
