Adjust manual brake release: MX10
Procedure Note

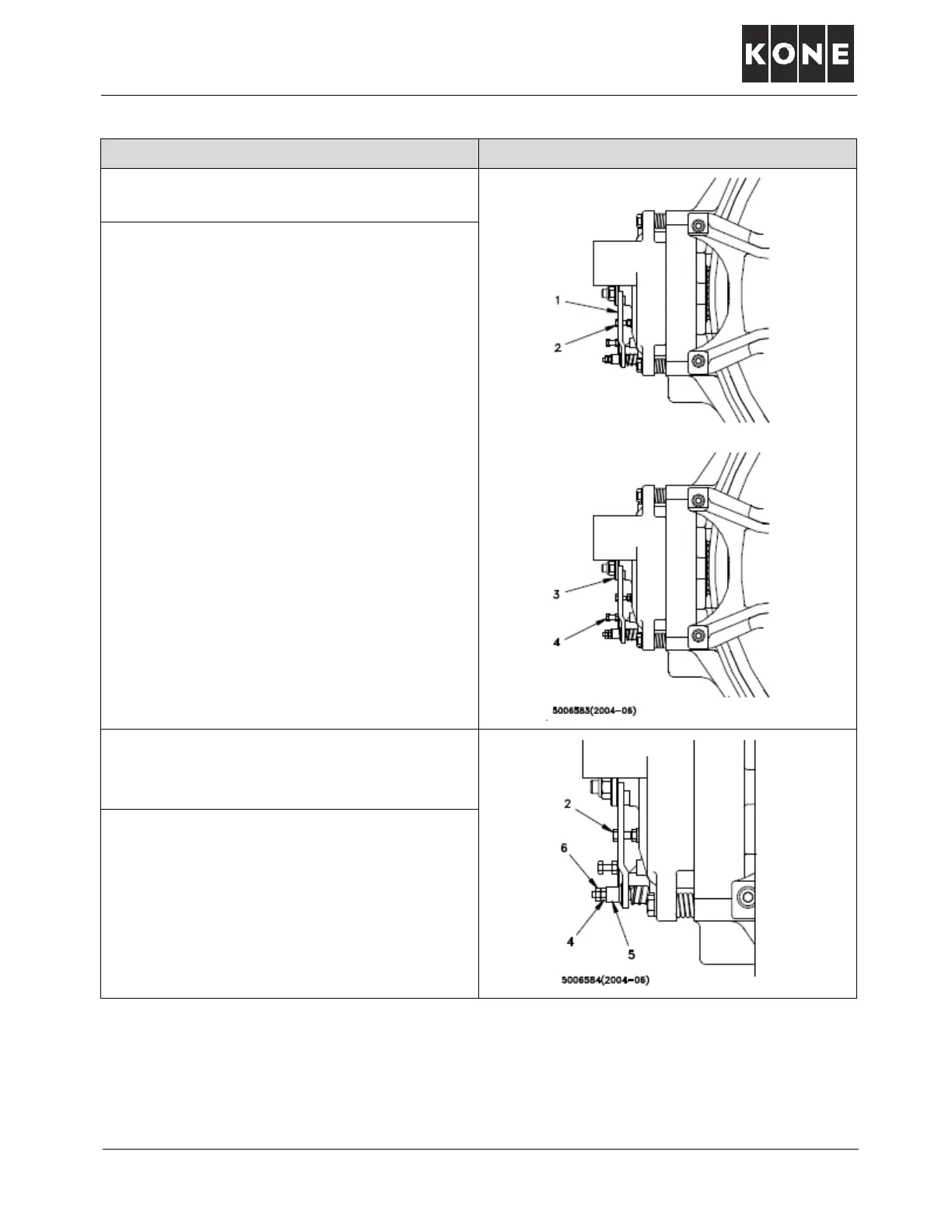

1. Adjust brake levers (1) parallel to the brake
face using set screw (2).
2. Make sure washer (3) is not tight. It must be
free to rotate.
3. Adjust end nut (4) so that levers at both
sides lean against set screws (2), and
bushings (5) are sitting flush inside levers.
4. Tighten jam nut (6).
