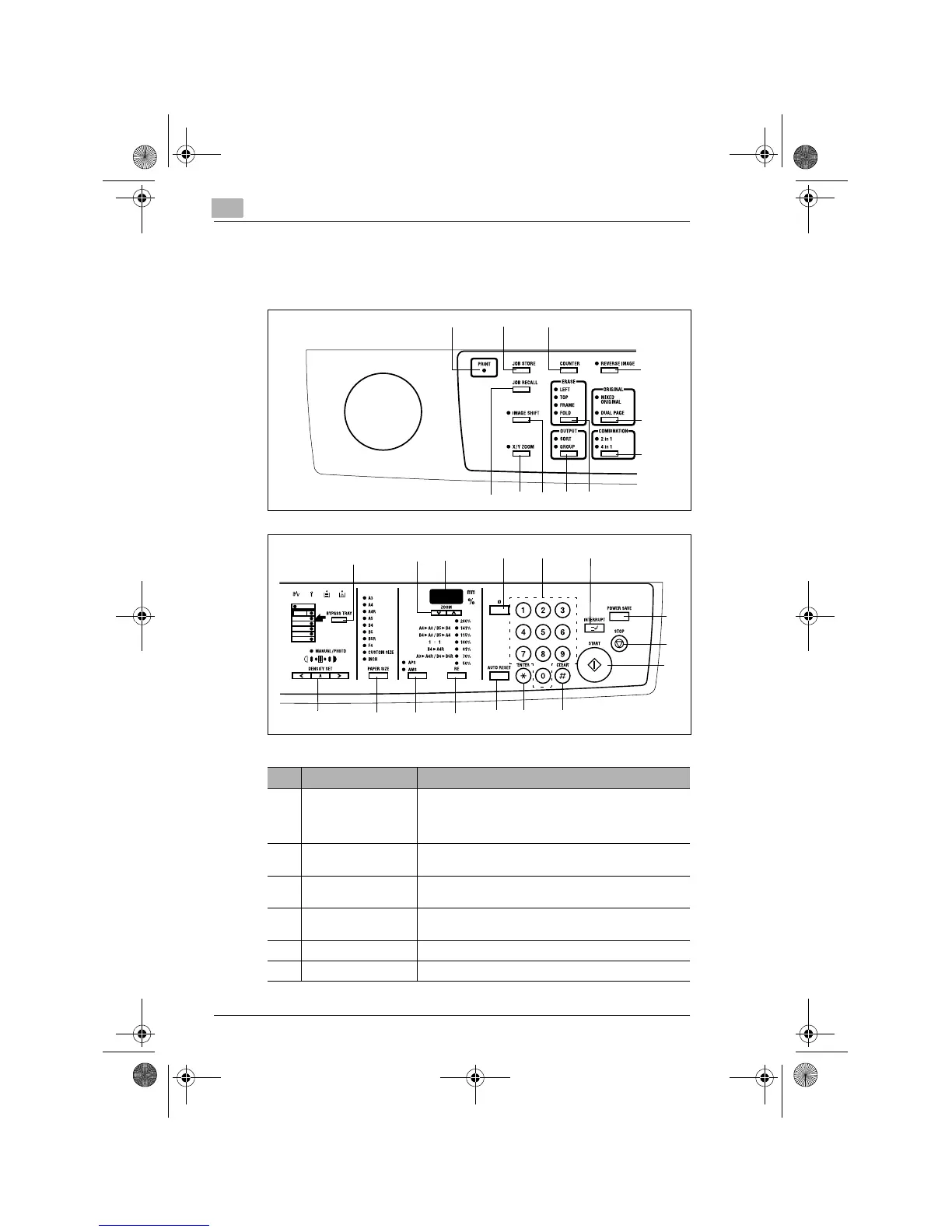

3.4 Control Panel
Names of Control Panel Parts and Their Functions
No. Part Name Description
1 PRINT • Lit while data received from personal computer is being
printed.
Blinks while data is being transferred.
For details, refer to the Printer Controller User Manual.
2 JOB STORE • Press to select the Job Input mode. Two different jobs
can be programmed.
3 COUNTER • Press to display the Total Counter or Size Counter
value.
4 REVERSE IMAGE • Press to copy an original with the original tonal
arrangements reversed.
5 ORIGINAL • Press to select the Mixed Org. or Dual Page function.
6 COMBINATION • Press to select the 2in1 or 4in1 function.
