5-54 Saddle Stitcher SD-513
[Saddle Stitcher Adjustment] - [Trimmer Receiver Adjustment]
5
5.18
5.18.2 Moving Pitch Select
Specify the distance for the trimmer receiver of Saddle Stitcher SD-513 to move.
NOTICE
The [Trimmer Receiver Adjustment] key is displayed only in the customer engineer setting mode. Contact your
service representative, if desired.

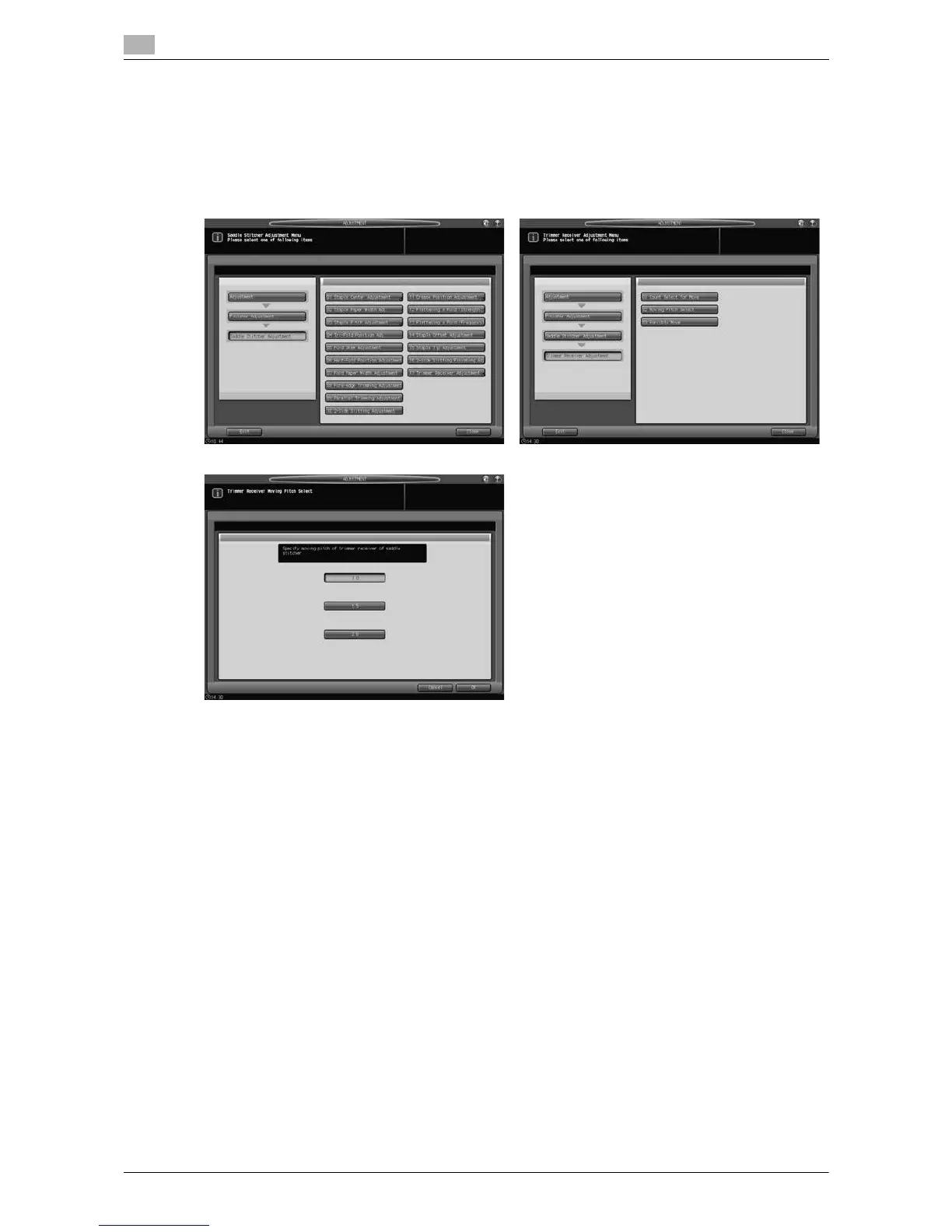

1 Press [Adjustment] on the Machine Screen to display the Adjustment Menu Screen.
2 Display the Moving Pitch Select Screen for trimmer receiver.
% In bizhub PRESS 1250/1250P/1052, press [02 Finisher Adjustment], [08 Saddle Stitcher Adjust-
ment], [17 Trimmer Receiver Adjustment], and [02 Moving Pitch Select] in sequence.
% In bizhub PRESS C1070/C1070P/C1060/C71hc, press [04 Finisher Adjustment], [04 Saddle
Stitcher Adjustment], and [17 Trimmer Receiver Adj.] in sequence.
% In bizhub PRESS C1100/C1085, press [03 Finisher Adjustment], [04 Saddle Stitcher Adjustment],
and [17 Trimmer Receiver Adj.] in sequence.
3 Select [1.0], [1.5], or [2.0] (Unit: mm).
% In bizhub PRESS C1070/C1070P/C1060/C71hc or bizhub PRESS C1100/C1085, select the ap-
propriate item in [Move Pitch].
4 Press [OK] to restore the Trimmer Receiver Adjustment Menu Screen.
To Next Page
