501/421/361 1-14
Before Making Copies
1
1.1.7 Saddle Stitcher SD-507/Mailbin Kit MT-502
2
Reminder
The finisher utilizes different trays by adjusting the height, which makes the entire set of trays move up
and down. This vertical movement becomes even larger when a saddle stitcher or mailbin is installed,
and any object placed on or beneath the finisher may cause damage by making contact to it. Make sure
that there is no object on or beneath the finisher.
Do not place objects on, or lean against, the saddle stitcher or mailbin to prevent any damage.

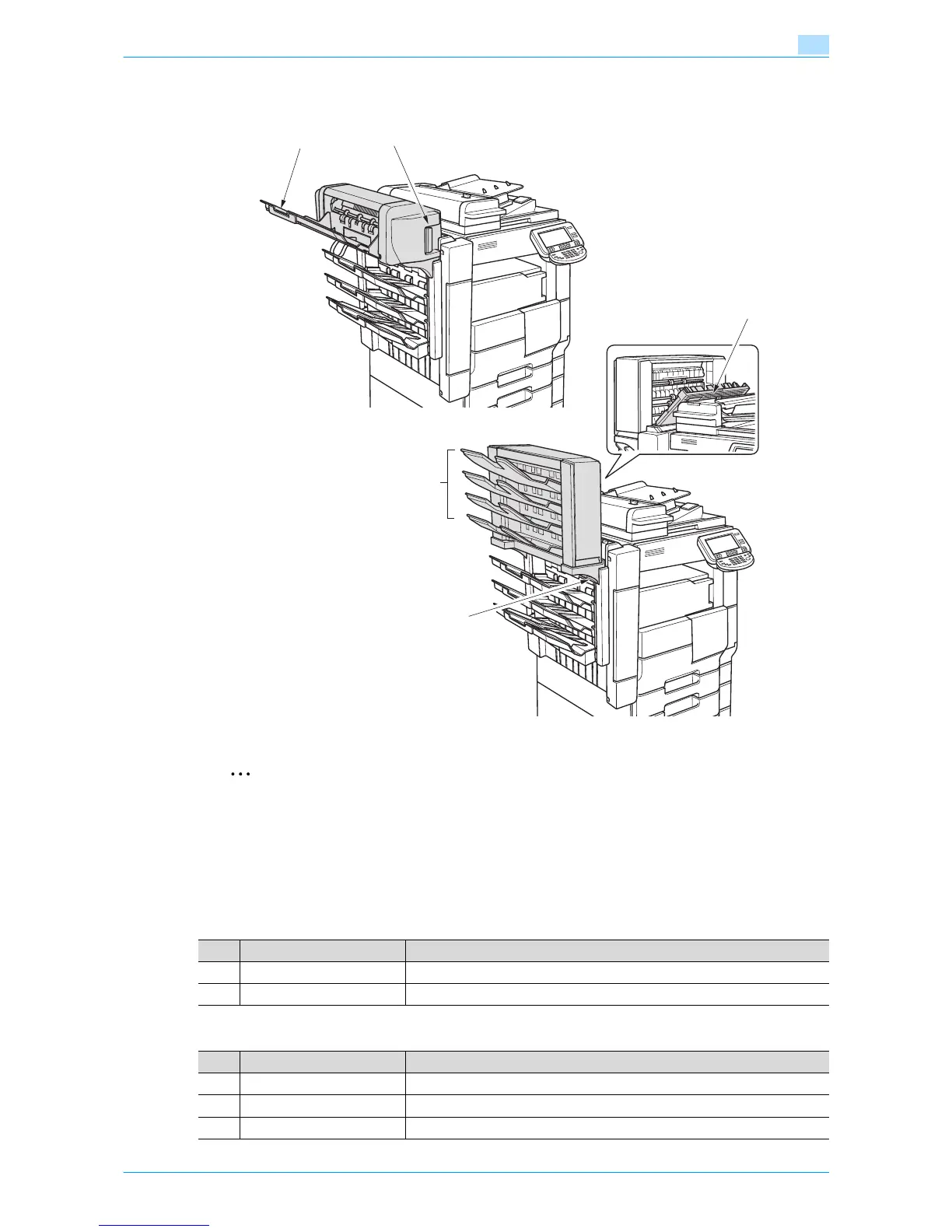

Saddle Stitcher SD-507
Mailbin Kit MT-502
1
3
1
2
2
No. Part name Description
1 Paper output tray Collects sheets.
2 Lock release lever Pulled to slide to the left when clearing paper misfeeds.
No. Part name Description
1 Lower cover lever (FN7) Pulled down to open when clearing paper misfeeds.
2 Mailbins Collects printed and sorted sheets.
3 Misfeed-clearing door Pulled to the right to open when clearing paper misfeeds.
