E-17

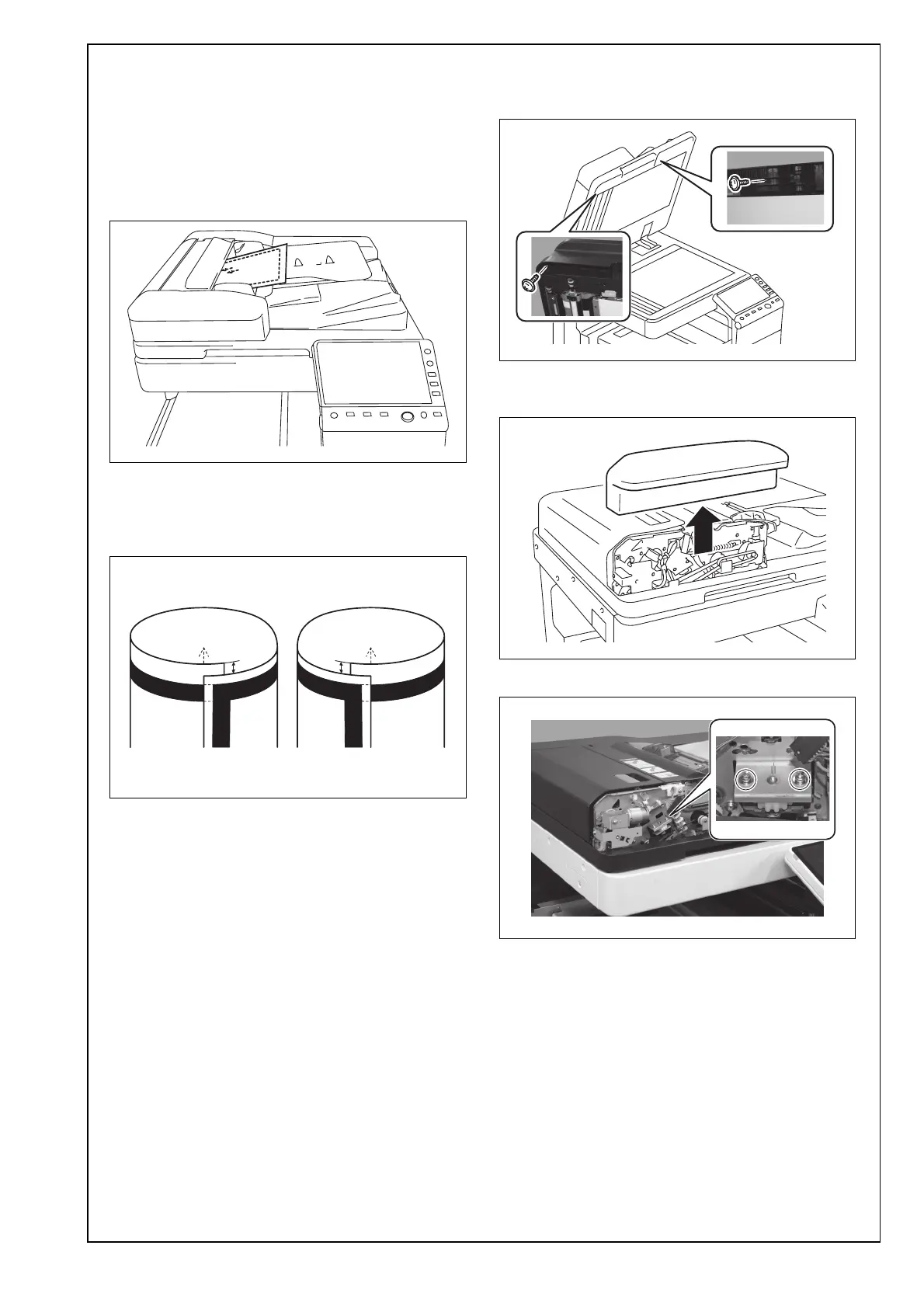

XX. Adjusting leading edge skew (back
side)
Note:
Perform this adjustment if necessary.
1. Place the chart in the document feeding tray.
(Make sure that the blank surface of the chart
faces up.)
2. Make copies 5 times repeatedly in duplex mode.
3. Fold all 5 sample copies as illustrated and check
for any deviation.
Deviation on the sample will be Z.
4. Obtain the difference between the deviation of
the chart and the deviation of the sample.
Difference of the deviation = Z - X
Specifications: 0 ± 2.0 mm
* If the difference of the deviation does not fall
within the specified range, perform the following
adjustment.
5. Open the reverse automatic document feeder
and remove the two screws shown in the illustra-
tion.
6. Close the reverse automatic document feeder.
7. Remove the front cover.
8. Loosen the two screws shown in the illustration.
A2X0IXC038DA
9J07IXC043DA
ZZ
Deviation in + (plus) Deviation in - (minus)
A2X0IXC039DA
A2X0IXC040DA
A2X0IXC066DA
To Next Page
