Konica Minolta magicolor 8650DN Installation Manual

E-27

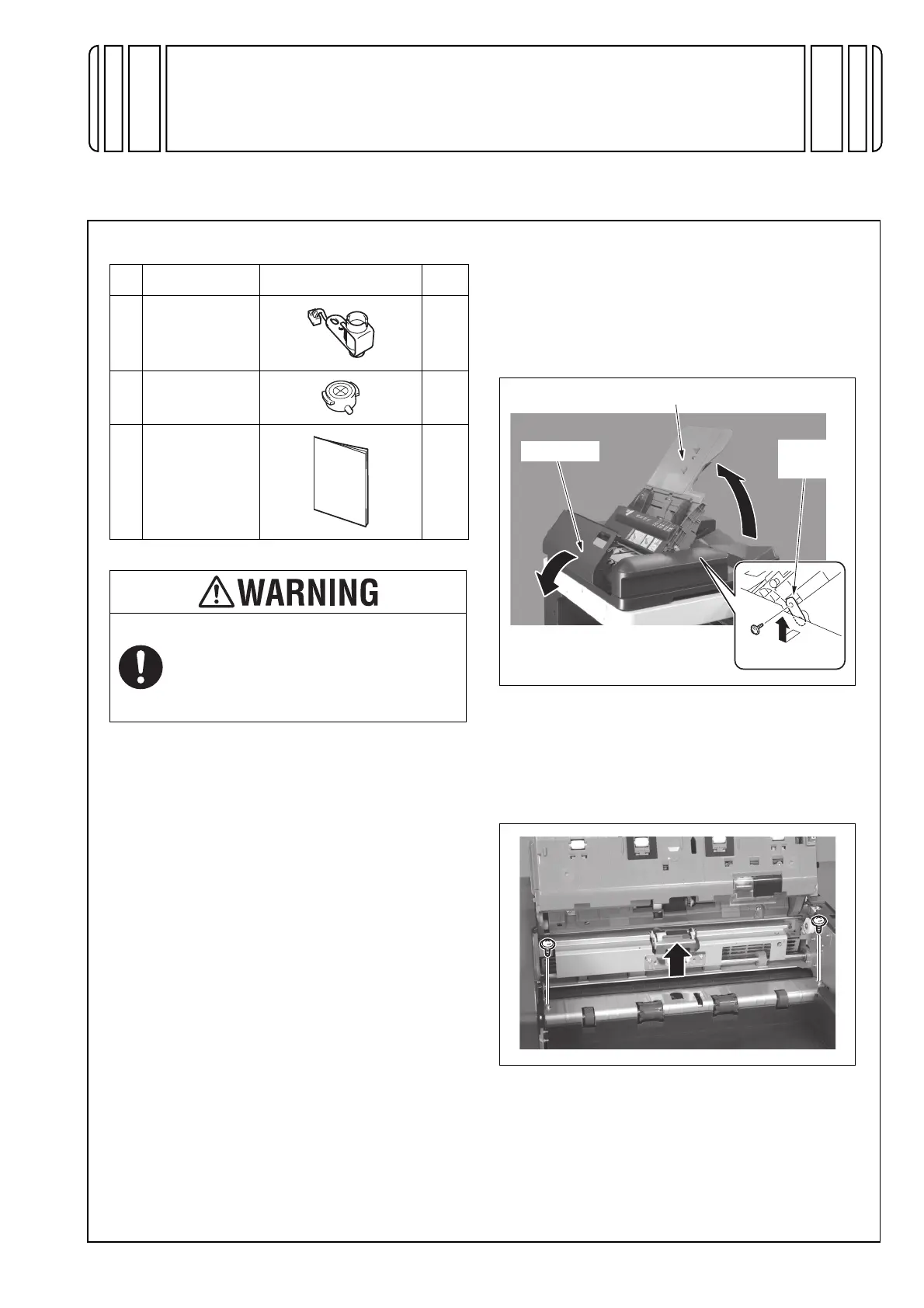

INSTALLATION MANUAL
SP-501
Stamp Unit
I. Accessory parts II. Installation procedures
1. Turn off the machine and unplug the power cord
from the power outlet.
2. Open the left cover of the reverse automatic doc-
ument feeder.
3. Move the document feeding tray up and remove
the mounting plate. (One screw)
4. Open the document feeding tray.
Note:
Take care so that the document feed tray will not
fall down during operation.
5. Remove two screws shown on the illustration and
remove the plate cover.
No. Name Shape Q’ty
1. Stamp unit
1
2. Stamp
1
3. Installation
manual
1 set
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.
4614U001AA
4614U002AA
4980IXC019DA
A2X0IXC046DA
Document feeding tray
Left cover
Mounting
plate
A2X0IXC047DA
