Konica Minolta magicolor 8650DN Installation Manual

E-7

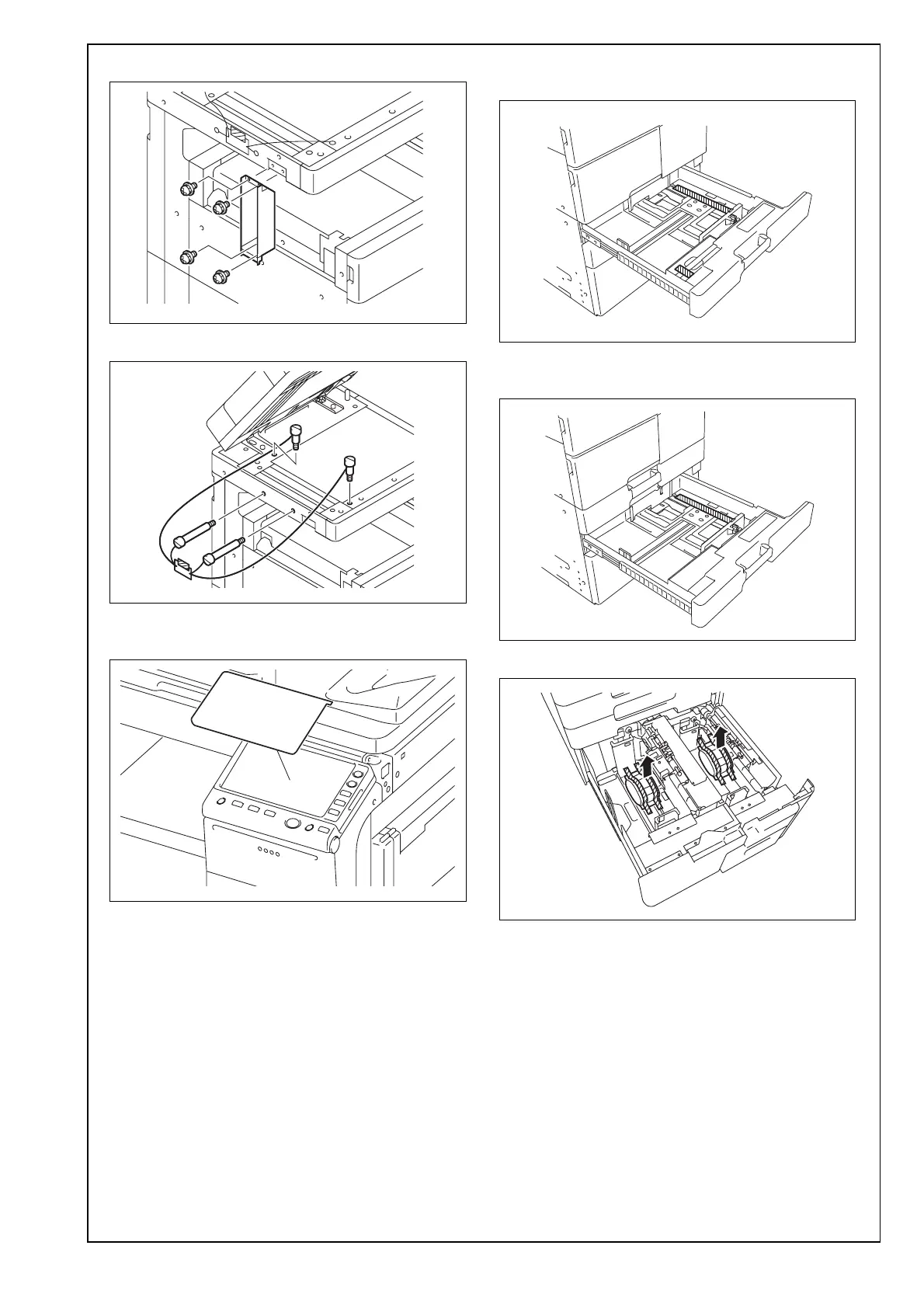

2. Remove the reinforcement plate. (Four screws)
3. Remove the locking screws.
4. Remove the protective sheet from the control
panel.
5. Pull the tray 1 out and remove the protective tape
from the tray.
6. Pull the tray 2 out and remove the protective tape
from the tray.
7. Pull trays 3 and 4 out and remove the desiccants.
A2X0IXC012DB
A2X0IXC013DA
A2X0IXC014DA
A2X0IXC015DA
A2X0IXC016DA
A2X0IXC058DA
