3.2 System overview

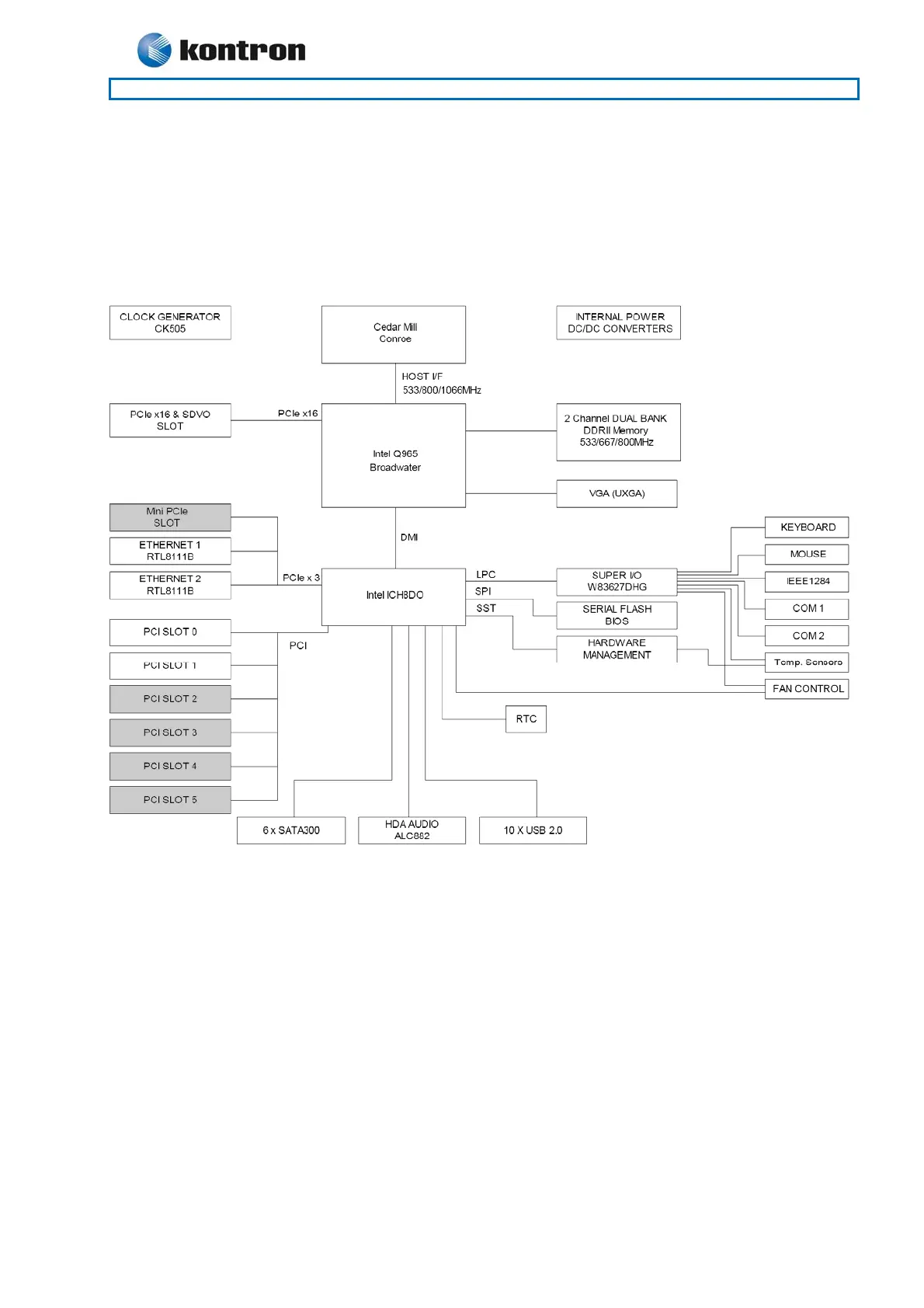

The block diagram below shows the architecture and main components of the KT965 boards. The two key
components on the board are the Intel
®
Q965 and Intel
®
ICH8DO Embedded Chipsets.
Components shown shaded are optional depending on board type (KT965/Flex, /ATXP or /ATXE) and
variants of the board.
