Kontron KT965/Flex - Ethernet Connector 2 (ETHER2)

KT965 Family
KTD-00699-S Public User Manual Date: 2010-04-15 Page 40 of 90
4.9.2 Ethernet connector 2 (ETHER2)
Ethernet connector 2 is mounted together with USB Ports 4 and 5.

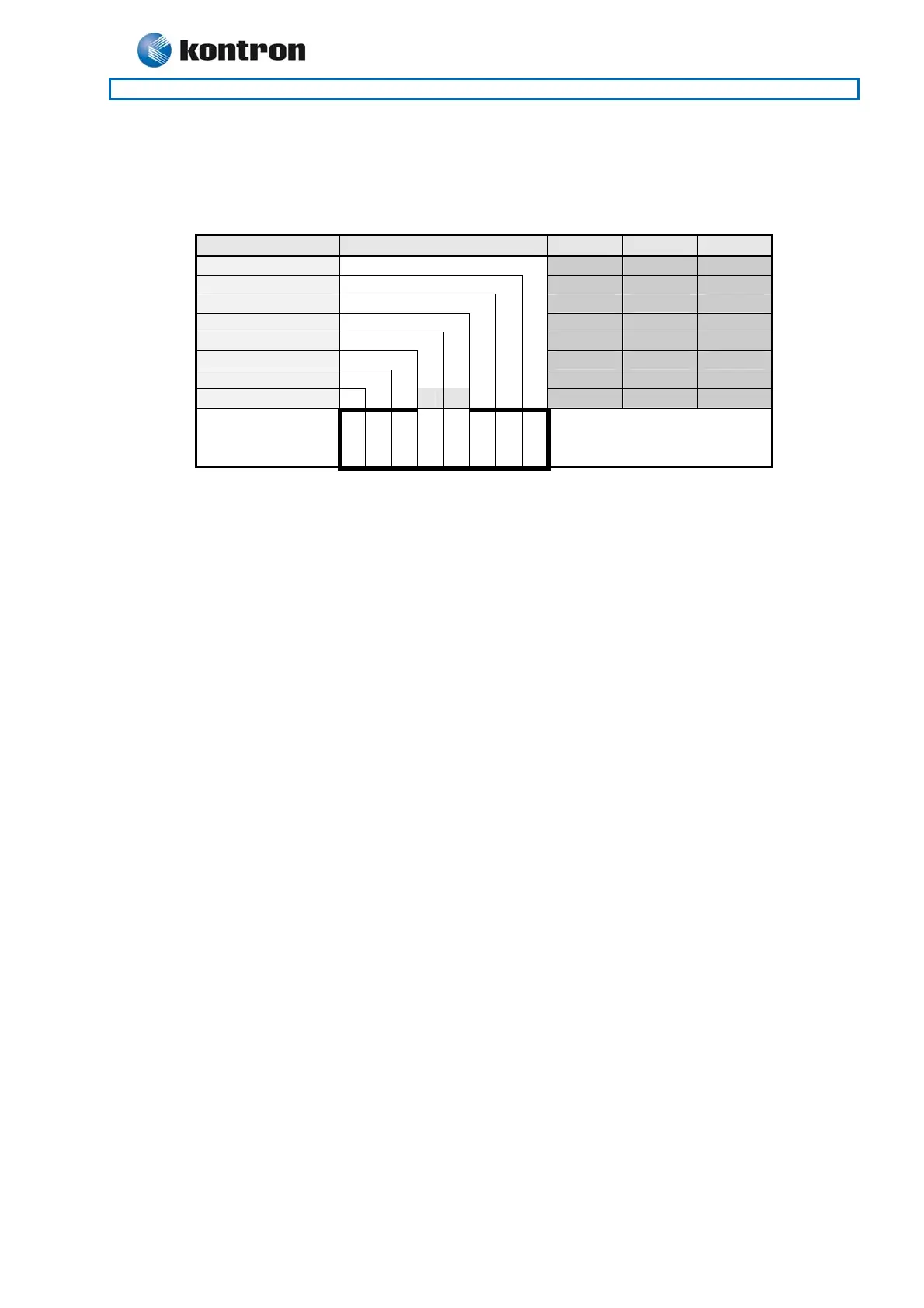

The pinout of the RJ45’s connector are as follows:
Signal PIN Type Ioh/Iol Note
MDI0+
MDI0-
MDI1+
MDI2+
MDI2-
MDI1-
MDI3+
MDI3-
8 7654321
