Kontron MSH8900 - Figure 14: Diagram of Interface Paths with a Serial Console Connection in an MS2900 Platform; Figure 15: Diagram of Interface Paths with a Serial Console Connection in an MS1300 Platform

MSH8900
www.symkloud.com // 28

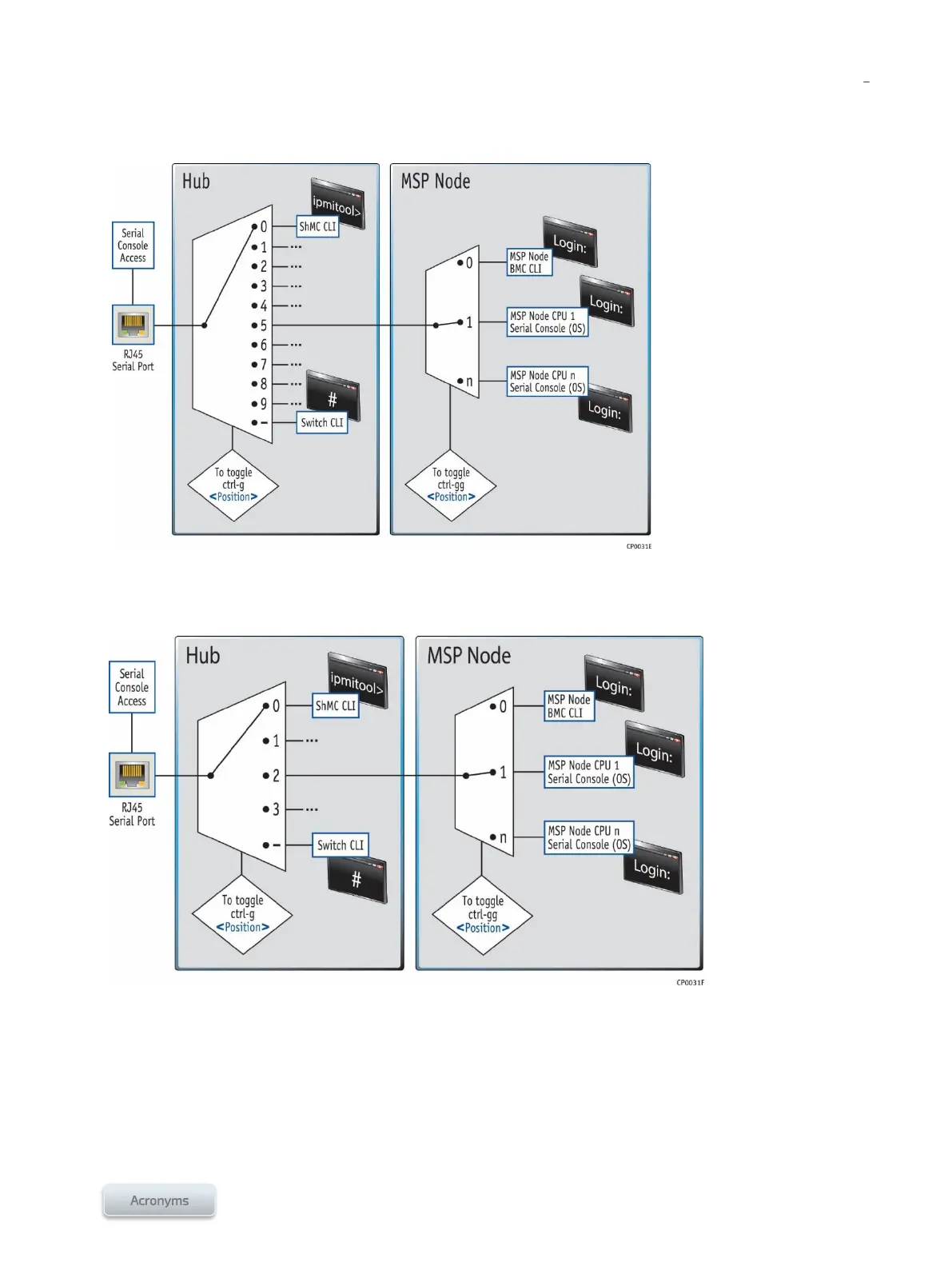

Figure 14: Diagram of interface paths with a serial console connection in an MS2900 platform
Figure 15: Diagram of interface paths with a serial console connection in an MS1300 platform
