Introduction

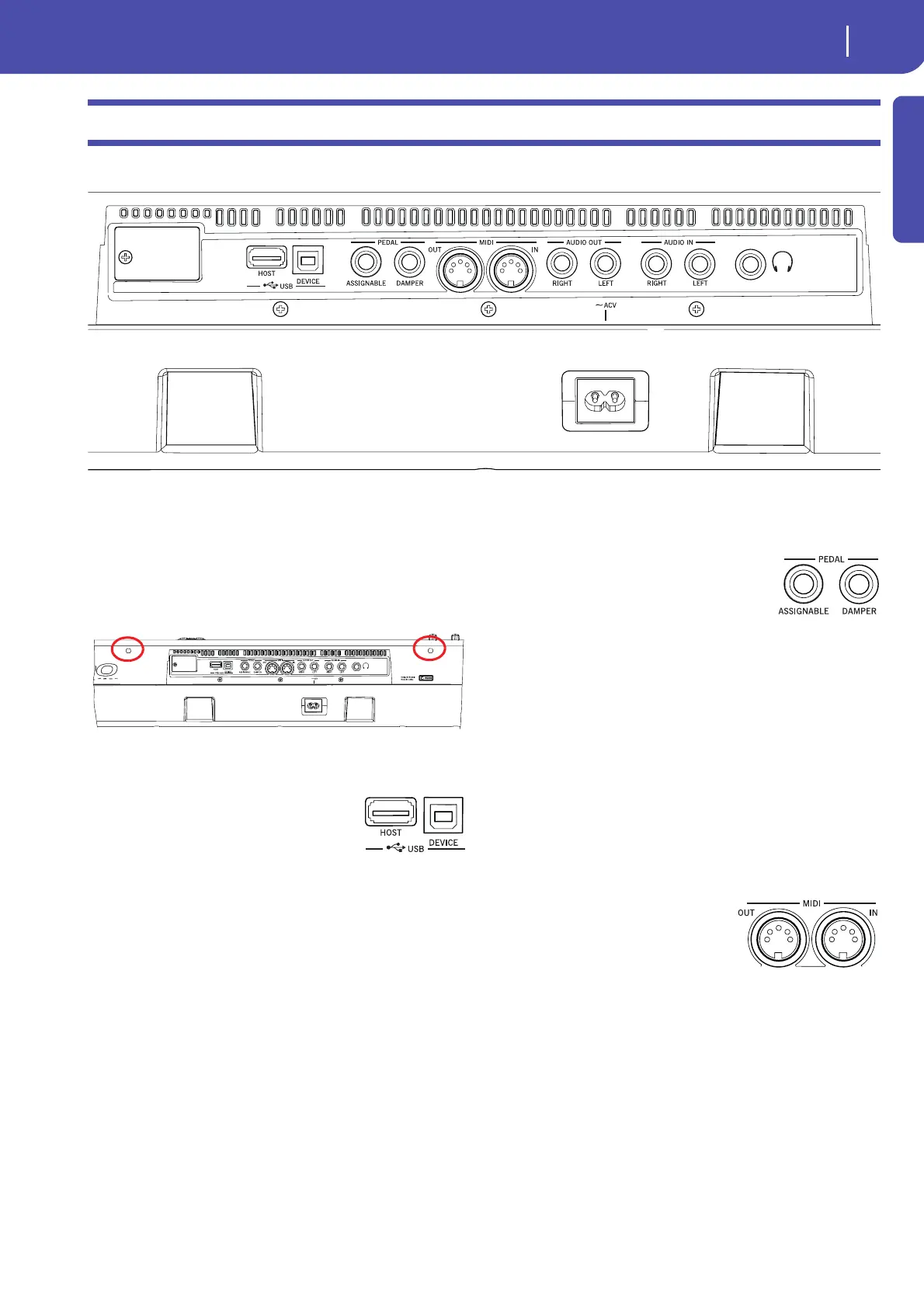

Rear Panel
Music stand
Music stand holes
A music stand comes standard with your Pa600. Insert its legs
into these two dedicated holes.
USB Connectors
Use these connectors to connect USB
devices, or a personal computer.
HOST(R)
This is a USB Type A (Master/Host) connector, USB 2.0 compli-
ant (High Speed only – to connect older, slower USB devices,
please use an USB hub). Use it to connect to the Pa600 an USB
Flash Memory stick, an external CD-ROM drive, an USB hard
disk. You can access the connected device in the Media mode.
DEVICE
This is a USB Type B (Slave/Device) connector, USB 2.0 (High
Speed). Use it to connect the Pa600 to a personal computer, and
transfer data to/from its internal memory (Disk). You can enable
USB connection in the “USB” page of the Media mode.
MIDI over USB is supported, so you can use this connector
instead of the MIDI ports. The drivers for PC and Mac, needed
to make full use of this type of connection, are supplied in the
Accessory Disk that comes with the instrument, or can be down-
loaded from our web site.
Pedals
Use these connectors to connect various
types of pedals.
ASSIGNABLE
Use this port to connect a continuous- or footswitch-type pedal,
like the (optional) Korg EXP-2, XVP10, PS-1 or PS-3. To pro-
gram and calibrate it, go to the Controllers > Foot Controllers
page of the Global mode.
DAMPER
Use this to connect a Damper pedal, like the (optional) Korg PS-
1, PS-3 or DS1H. To change its polarity and calibrate it, go to the
Controllers > Foot Controllers page of the Global mode.
Note: Half-pedalling on Piano Sounds is available when connect-
ing a DS1H damper pedal.
MIDI Interface
The MIDI interface allows your
Pa600 to be connected to external
controllers (master keyboard, MIDI
guitar, wind controller, MIDI accor-
dion…), to a series of expanders, or
to a computer running a sequencer.
OUT
This connector sends MIDI data generated by Pa600’s keyboard,
controllers, and/or the internal player. Connect it to an
expander’s or computer’s MIDI IN.
IN
This connector receives MIDI data from a computer or a con-
troller. Connect it to an external controller’s or computer’s MIDI
OUT.
