Korg TRITON Le Electric Keyboard

Effect
197

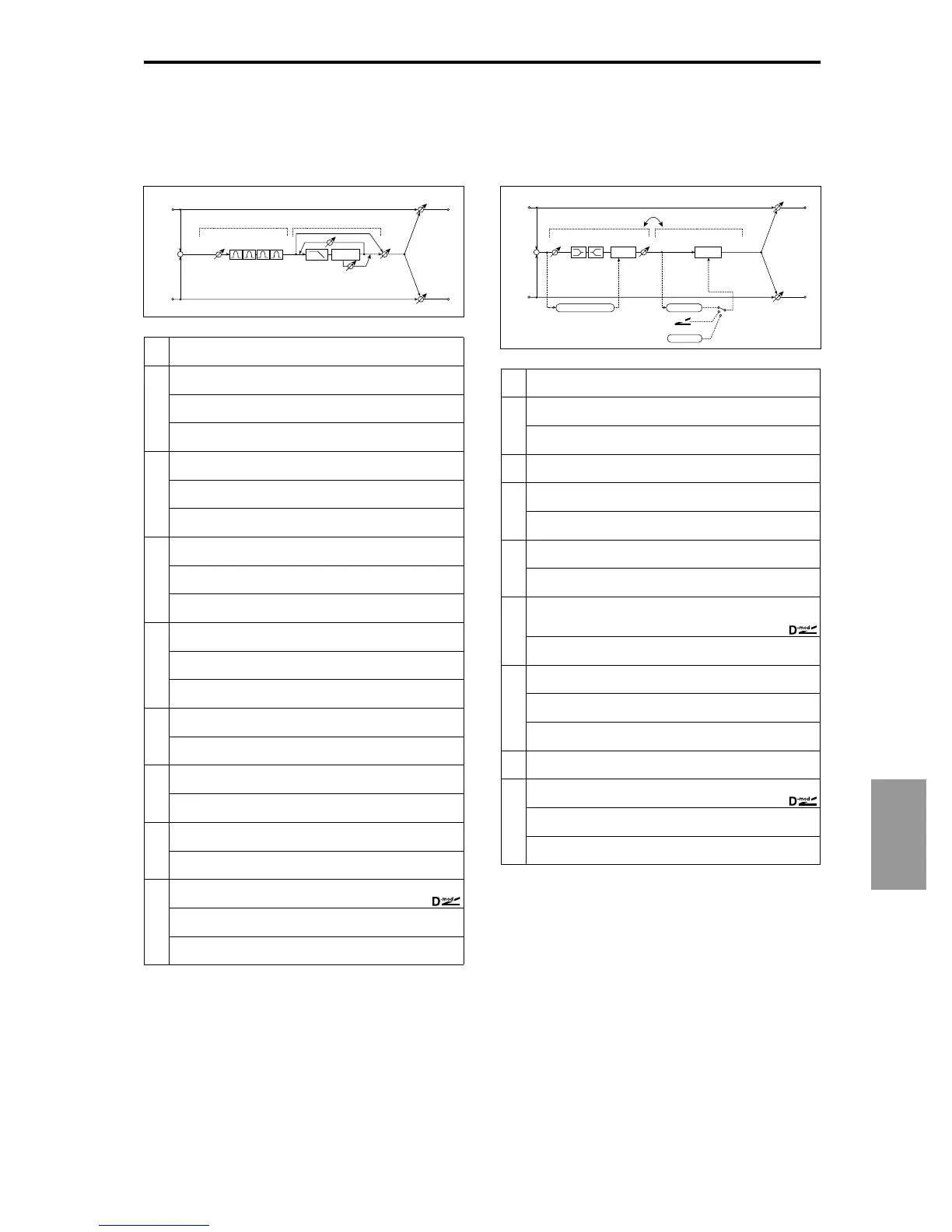

62: P4EQ–M.Dly
(Parametric 4-Band EQ – Multitap Delay)
This effect combines a mono-type four-band parametric
equalizer and a multitap delay.
63: Comp–Wah
(Compressor – Wah/Auto Wah)
This effect combines a mono-type compressor and a wah. You
can change the order of the connection.
a
[PEQ] Trim
Sets the parametric EQ input level
0...100
b
B1 (Band1 Cutoff)
Sets the center frequency of Band 1
20...1.00kHz
Q
Sets the bandwidth of Band 1
0.5...10.0
☞ Fx:06
G (Gain)
Sets the gain of Band 1
–18...+18dB
c
B2 (Band2 Cutoff)
Sets the center frequency of Band 2
50...5.00kHz
Q
Sets the bandwidth of Band 2
0.5...10.0
☞ Fx:06
G (Gain)
Sets the gain of Band 2
–18...+18dB
d
B3 (Band3 Cutoff)
Sets the center frequency for Band 3
300...10.00kHz
Q
Sets the bandwidth of Band 3
0.5...10.0
☞ Fx:06
G (Gain)
Sets the gain of Band 3
–18...+18dB
e
B4 (Band4 Cutoff)
Sets the center frequency for Band 4
500...20.00kHz
Q
Sets the bandwidth of Band 4
0.5...10.0
☞ Fx:06
G (Gain)
Sets the gain of Band 4
–18...+18dB
f
[DLY] T1 (Tap1 Delay)
Sets the Tap1 delay time
0...680ms
T2 (Tap2 Delay)
Sets the Tap2 delay time
0...680ms
g
T1 Level (Tap1 Level)
Sets the Tap1 output level
0...100
☞ Fx:45
T2 Fb (Tap2 Feedback)
Sets the Tap2 feedback amount
–100...+100
h
Dly W/D (Delay Wet/Dry) Dry, 2:98...98:2, Wet
Sets the multitap delay effect balance
HiDamp (High Damp)
Sets the damping amount in the high range
0...100%
☞ Fx:43
i
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
Trim
+
Parametric 4Band EQ Multitap Delay
Feedback
High Damp
Delay
(2)
(1)
Mt.Dly Wet / Dry
a
[CMP] Sensitivity
Sets the sensitivity
1...100
☞ Fx:02
b
Attack
Sets the attack level
1...100
☞ Fx:02
Level (Output Level)
Sets the compressor output level
0...100
☞ Fx:02
c
Pre EQ Trim
Sets the EQ input level
0...100
d
LoEQ (Pre Low EQ Gain)
Sets the gain of Low EQ
–15...+15dB
HiEQ (Pre High EQ Gain)
Sets the gain of High EQ
–15...+15dB
e
[WAH] FreqBtm (Frequency Bottom)
Sets the lower limit of the wah center frequency
0...100
☞ Fx:09
Top (Frequency Top)
Sets the upper limit of the wah center frequency
0...100
☞ Fx:09
f
Swp Mode (Sweep Mode) Auto, Dmod, LFO
Selects the control from auto-wah, modulation source, and LFO
☞ Fx:09,
Src (Source) Off...Tempo
Selects the modulation source for the wah when Swp Mode=Dmod
g
lfoF (LFO Frequency)
Sets the LFO speed
0.02...20.00Hz
Res (Resonance)
Sets the resonance amount
0...100
LPF (Low Pass Filter)
Switches the wah low pass filter on and off
Of, On
h
[Routing] CMP → WAH, WAH → CMP
Switches the order of the compressor and wah connection
i
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Mono Out / Dry: Stereo In - Stereo Out
+
Compressor
Routing
Wah/Auto Wah
Wah
D
-mod
Envelope
Sweep Mode
D-mod
Auto
LFO
LFO
LEQ HEQ
EQ Trim
Comp
Output Level
Envelope - Control
