Korg TRITON Le Electric Keyboard

Effect
201

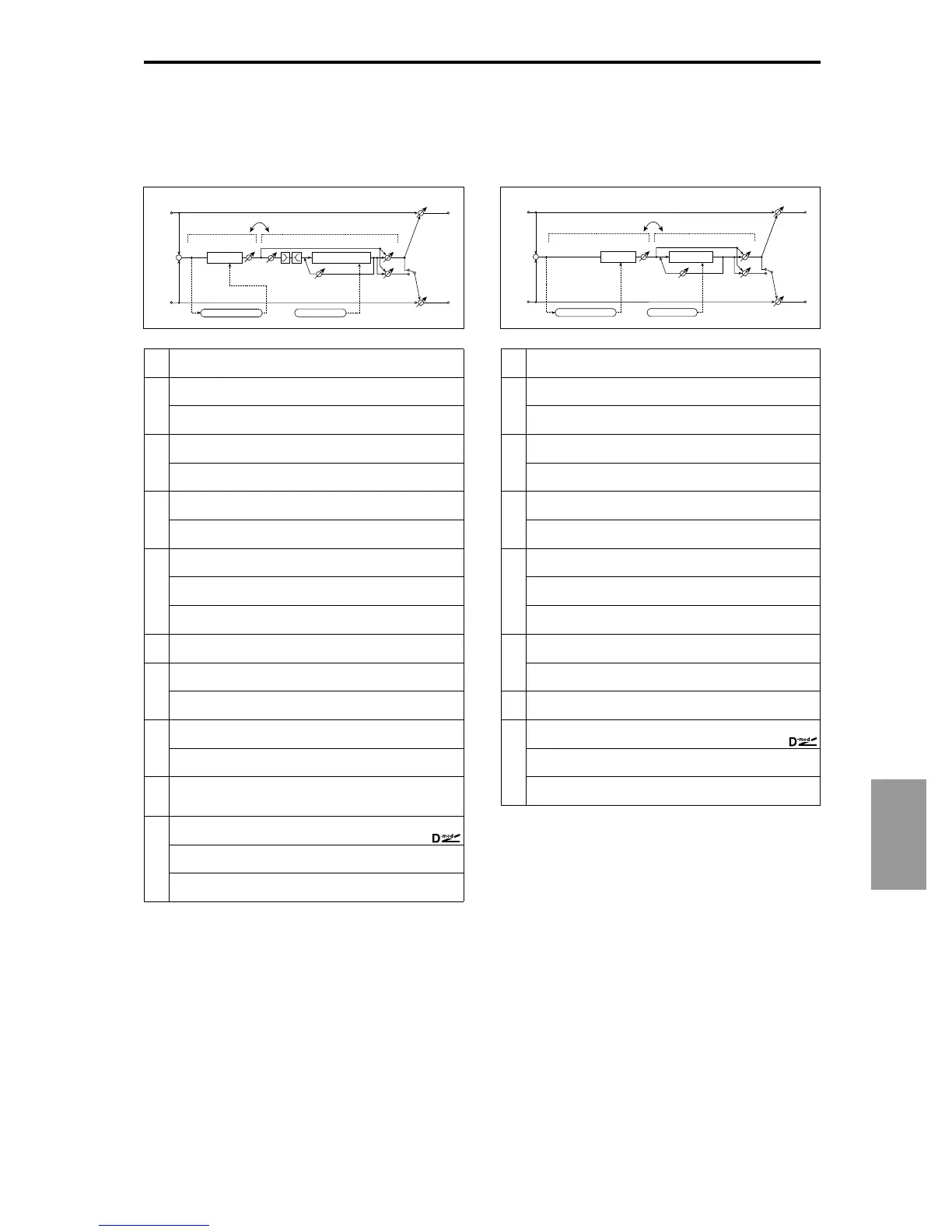

71: Limit–Cho/Fl
(Limiter – Chorus/Flanger)
This effect combines a mono-type limiter and a chorus/
flanger. You can change the order of the effect connection.
72: Limit–Phaser
(Limiter – Phaser)
This effect combines a mono-type limiter and a phaser. You
can change the order of the effect connection.
a
[LMT] Ratio 1.0:1...50.0:1, Inf:1
Sets the signal compression ratio ☞ Fx:03
b
Threshld (Threshold) –40...0dB
Sets the level above which the compressor is applied ☞ Fx:03
G.Adj (Gain Adjust)
Sets the limiter output gain
–Inf, –38...+24dB
☞ Fx:03
c
Attack
Sets the attack time
1...100
☞ Fx:03
Release
Sets the release time
1...100
☞ Fx:03
d
[CH/FL] LFO (LFO Waveform)
Selects the LFO waveform of the chorus/flanger
Tr i, Sine
F (LFO Frequency)
Sets the LFO speed
0.02...20.00Hz
e
Dly (Delay Time)
Sets the delay time
0.0...50.0ms
Dep (Depth)
Sets the depth of LFO modulation
0...100
Feedback
Sets the feedback amount
–100...+100
☞ Fx:20
f
[F] EQ Trim
Sets the EQ input level
0...100
g
[F] Pre LEQ Gain [dB]
Sets the gain of Low EQ
–15...+15dB
Pre HEQ Gain [dB]
Sets the gain of High EQ
–15...+15dB
h
[F] Cho/Flng W/D –Wet...–2:98, Dry, 2:98...Wet
Sets the effect balance of the chorus/flanger ☞ Fx:10, 20
Output Mode Normal, Wet Inv
Selects the output mode for the chorus/flanger ☞ Fx:67
i
Routing LMT→CH/FL, CH/FL→LMT
Switches the order of the limiter and chorus/flanger connection
☞ Fx:67
j
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Chorus/Flanger
Feedback
Cho/Flng Wet / Dry
Normal
Wet Invert
Output Mode
–
+
Limiter
Limiter
Gain Adjust
Envelope - Control
LEQ
HEQ
EQ Trim
Chorus/Flanger
LFO: Tri / Sine
a
[LMT] Ratio 1.0:1...50.0:1, Inf:1
Sets the signal compression ratio ☞ Fx:03
b
Threshld (Threshold) –40...0dB
Sets the level above which the compressor is applied ☞ Fx:03
G.Adj (Gain Adjust)
Sets the limiter output gain
–Inf, –38...+24dB
☞ Fx:03
c
Attack
Sets the attack time
1...100
☞ Fx:03
Release
Sets the release time
1...100
☞ Fx:03
d
[PHS] LFO (LFO Waveform)
Selects the LFO waveform of the phaser
Tr i, Sine
F (LFO Frequency)
Sets the LFO speed
0.02...20.00Hz
e
Manu (Manual)
Sets the frequency to which the effect is applied
0...100
Dep (Depth)
Sets the depth of LFO modulation
0...100
Resonance
Sets the resonance amount
–100...+100
☞ Fx:23
f
[P] Phaser W/D –Wet...–2:98, Dry, 2:98...Wet
Sets the phaser effect balance ☞ Fx:10, 23
Output Mode Normal, Wet Inv
Selects the phaser output mode ☞ Fx:67
g
Routing LMT→PHS, PHS→LMT
Switches the order of the limiter and phaser connection ☞ Fx:67
h
W/D (Wet/Dly) Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
(Source) Off...Tempo
Selects the modulation source of the effect balance
(Amount)
Sets the modulation amount of the effect balance
–100...+100
Left
Right
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In - Stereo Out
+
Routing
Limiter
Limiter
Gain Adjust
Envelope - Control
Phaser
Phaser
Resonance
LFO: Tri / Sine
Phaser Wet / Dry
Normal
Wet Invert
Output Mode
–
+
