Shenzhen Anycubic Technology Co., Ltd.
4

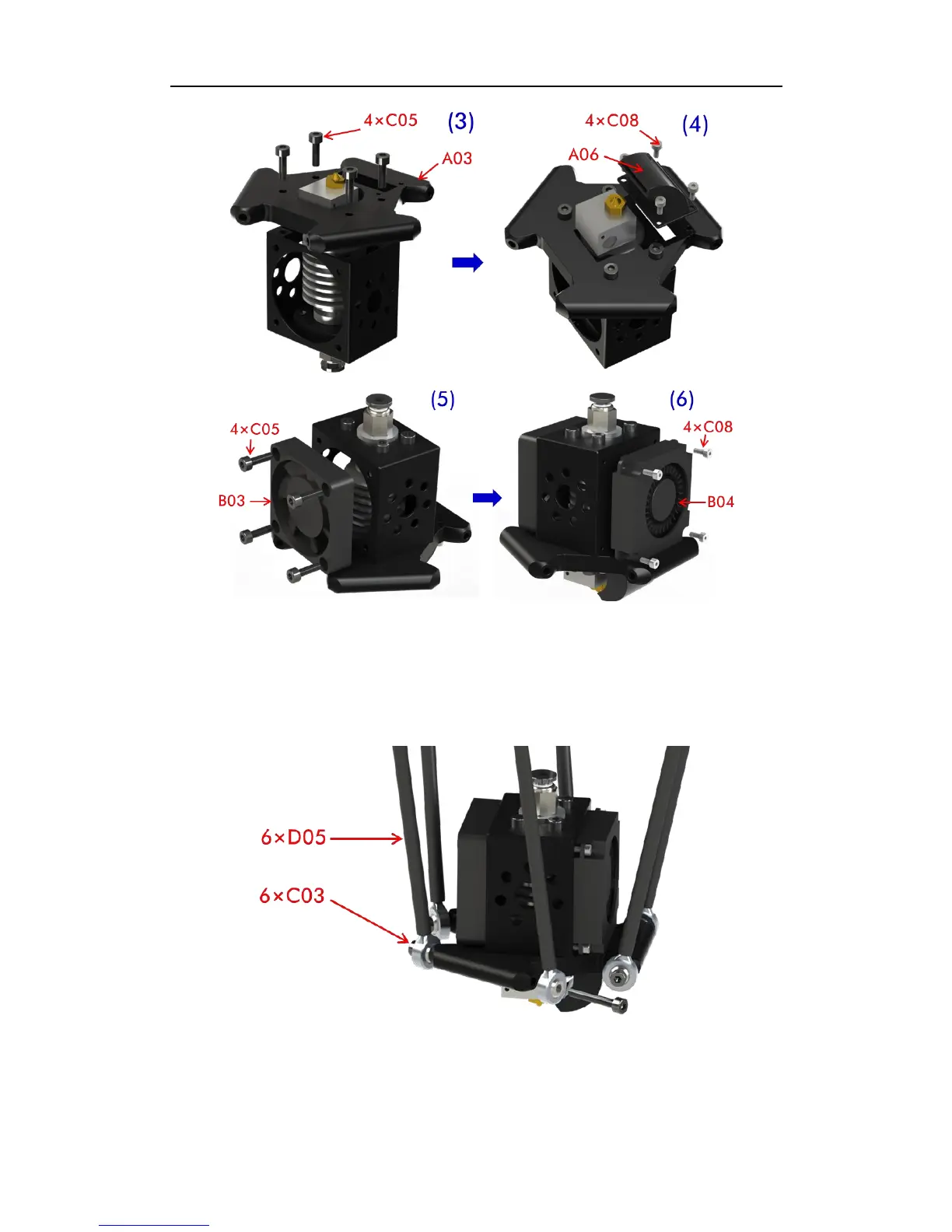

Fig. 8
Step 2. As shown in Fig. 8 (3) and (4), find the suitable angle to fix the Hot End into A03.
Then fix the heat rod and thermistor back. After, use 4 pieces of C08 to fix the air nozzle
(A06). Lastly, fix B03 and B04 (fans) to the correct side of the radiator cover.
Step 3. Fix 6 carbon fiber tubes (CFT, D05) onto A03 using C03 screws, as shown in Fig. 9.
Fig. 9
Step 4. Fig. 10 shows the assembly of 3 belt tensioners which connected to the CFTs. Please
note the suggested height of the top screws (C07) is 8mm.
