Shenzhen Anycubic Technology Co., Ltd.
1
Mechanics

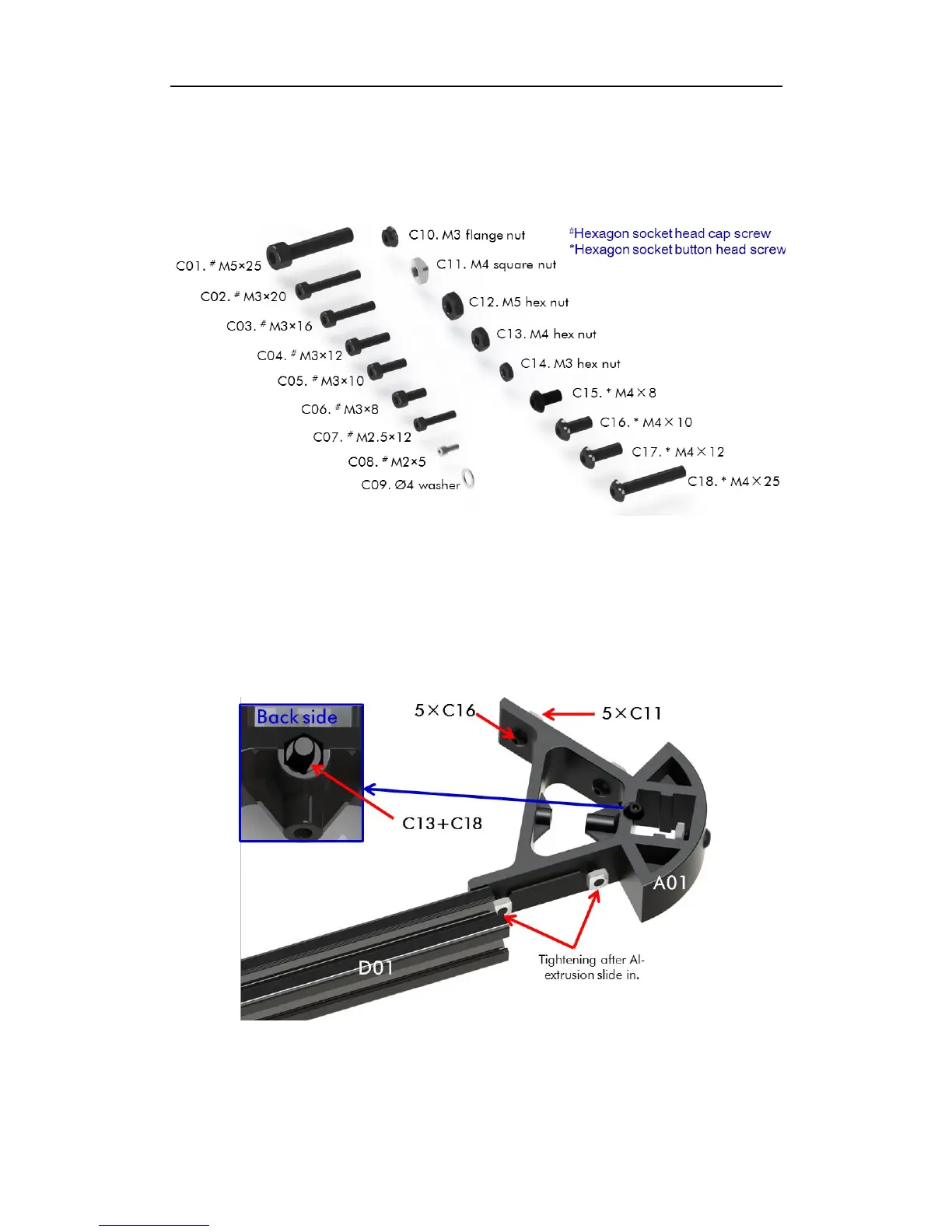

Fasteners Listing
Note: A flat surface is recommended for the assembly. Hex keys are available within the
package. Take care of the scrap when unpack Al-extrusions and keep it away from children.
1. Top and bottom triangle
Step 1. Firstly, hang but not tighten 5 pairs of C16 and C11 onto A01 as shown in Fig 1.
Then push an Al-extrusion (D01) through two screws along A01 and tighten the
corresponding screws. Lastly, fix one pair of C13 and C18 onto A01 as shown in top-left.
Fig 1
Step 2. Place 3 pieces of assembled A01 and D01 on a flat surface with back side face
down, as shown in Fig. 2. Then, follow the blue arrows, slowly push forward those 3 parts to
