Shenzhen Anycubic Technology Co., Ltd.
3

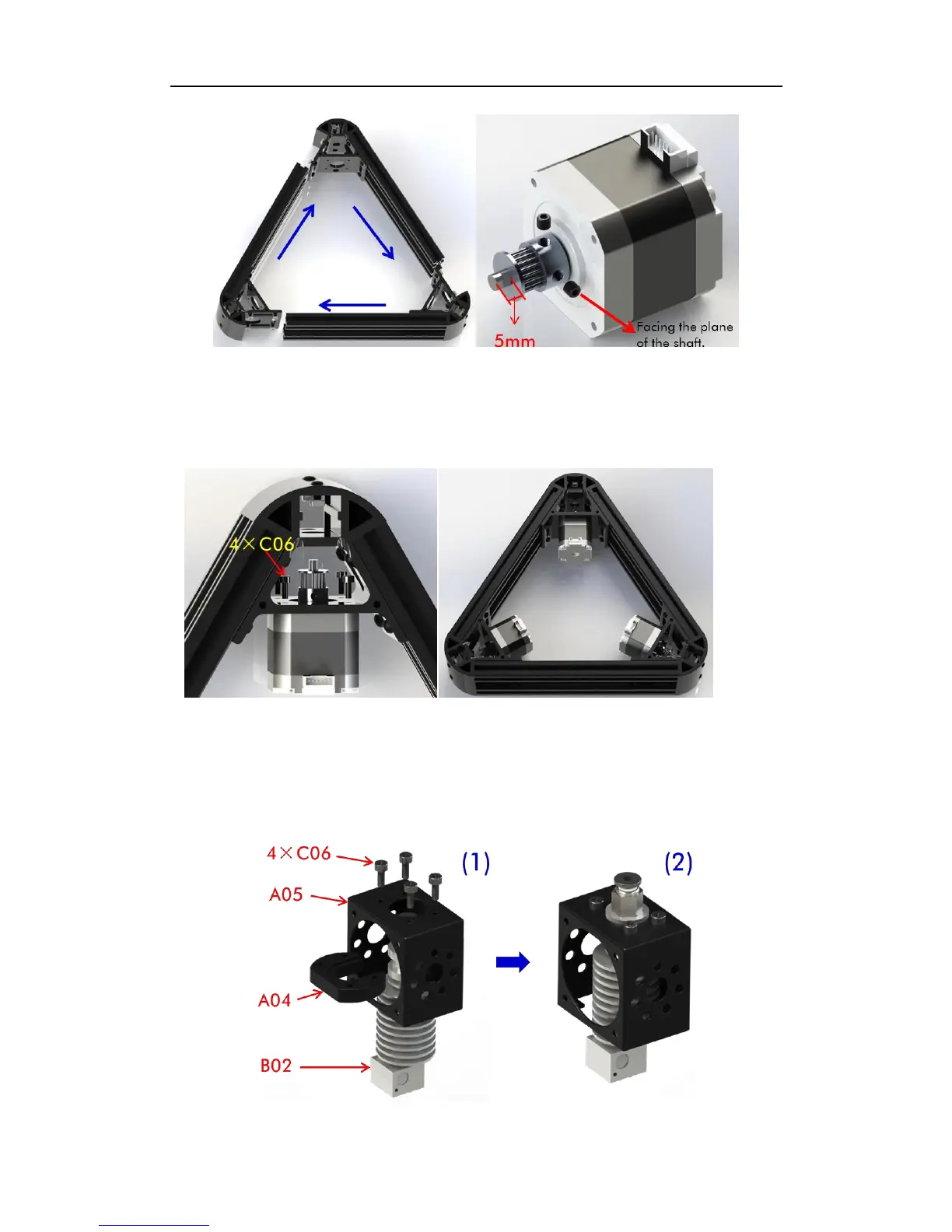

Fig. 5 Fig. 6
Step 6. Fig.6 shows the assembly of 3 stepper motors. After assembly, using C06 to fix those
motors to each corners of the bottom triangle as demonstrated in Fig. 7. Make sure the
sockets of the motors face up.
Fig. 7
2. Effector
Step 1. Before installation, detach the heat rod and thermistor from the hot end set. Then
install the Hot End to the radiator cover (A05) by a horseshoe (A04), as shown in Fig 8.
Leave the C06 screws untightened in order to adjust the hot end angle later if necessary.
