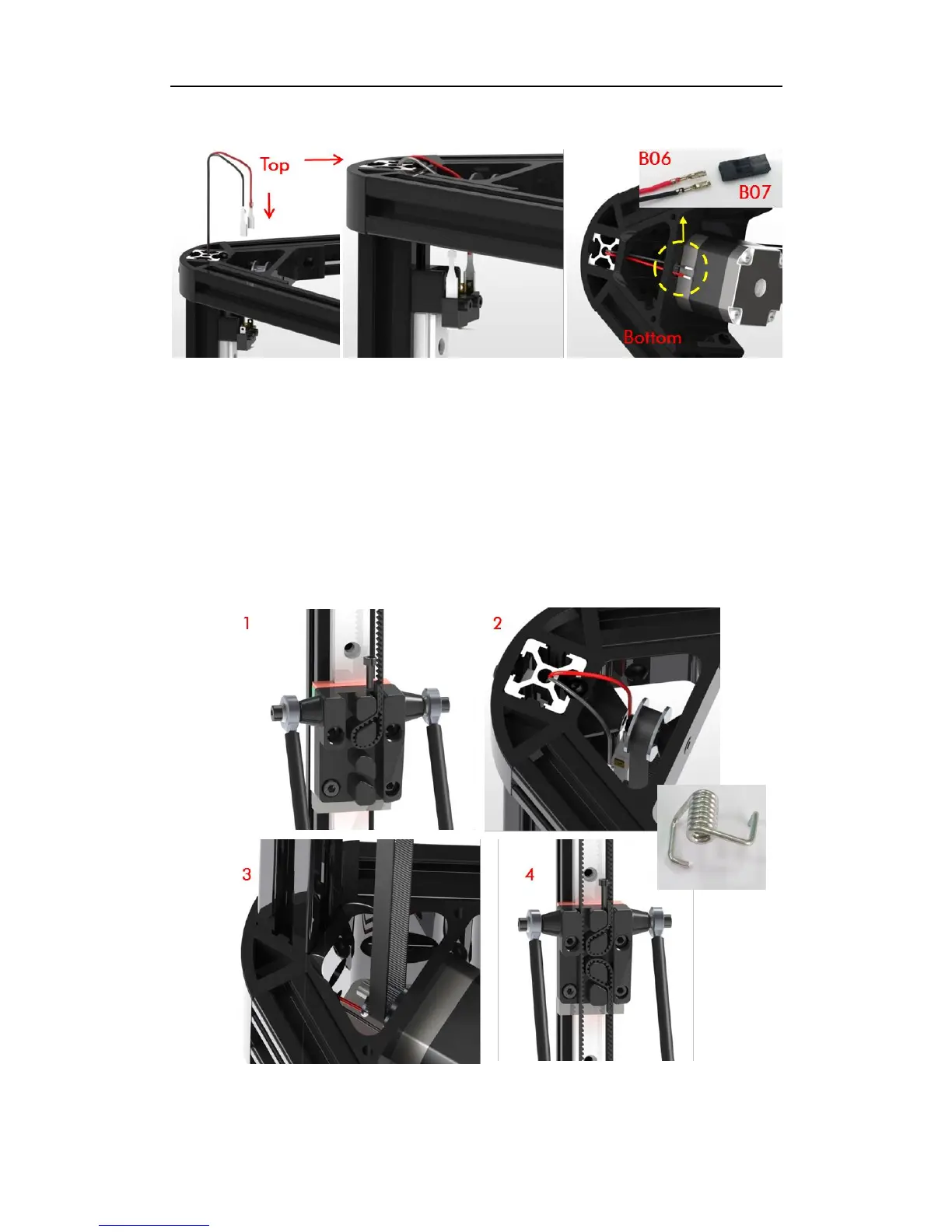

the bottom end of B06 into the terminal of B07. Do the same to the rest of limit switches.
Fig. 20
5. Belts
The assembly of belt is the same for both Linear and Pulley version. We take the Linear
version for example. Divide the belt into 3 equal parts. Fix one end of a belt onto the belt
tensioner as shown in Fig. 21-1. Thread the belt through the top guiding wheel, then the
bottom synchronizing wheel, and lastly fix the other end of the belt back to the belt tensioner,
Fig. 21-4. Do the same to the rest of 2 belt parts. If necessary, use the belt tension spring
(D09) to adjust the tightness of the belts.
Fig. 21
