KT-107, KT-107RB - Mounting the KT-107, KT-107RB
4. Insert the M5x60 screw through the M5x60 screw opening to secure the tabletop
mount to the table at the desired location.
5. Tighten the screw from under the table using an M5 Wing nut or a regular M5 nut.

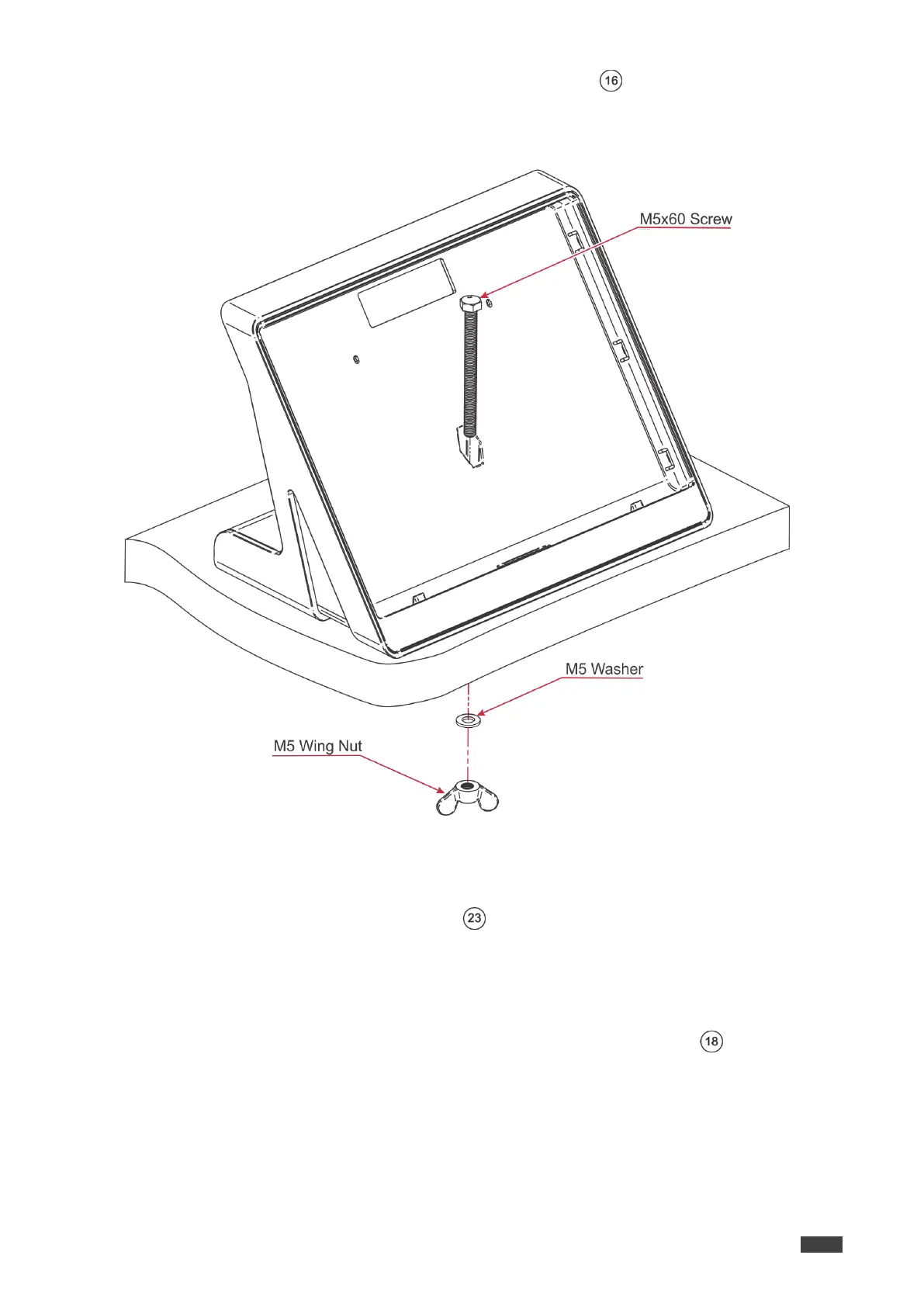

Figure 8: Securing Tabletop Mount
Setting KT-107 on the Tabletop Mount
Before you begin, verify that the cable cover is removed.
To connect the cables and set the KT-107 on the tabletop mount:
1. Connect the RJ-45 port on the tabletop mount to the PoE-enabled network.
2. Connect the power adapter to the Power 2-pin terminal block connector on the
tabletop mount and to the mains power.
3. Place the KT-107 over the tabletop mount (the Touch Panel is magnetically held in
place), by first inserting the lower part of the Touch Panel then carefully laying the
KT-107 in place.
