KT-107, KT-107RB - Mounting the KT-107, KT-107RB
17
4. Insert the 4 M2x4 screws (supplied) and tighten.

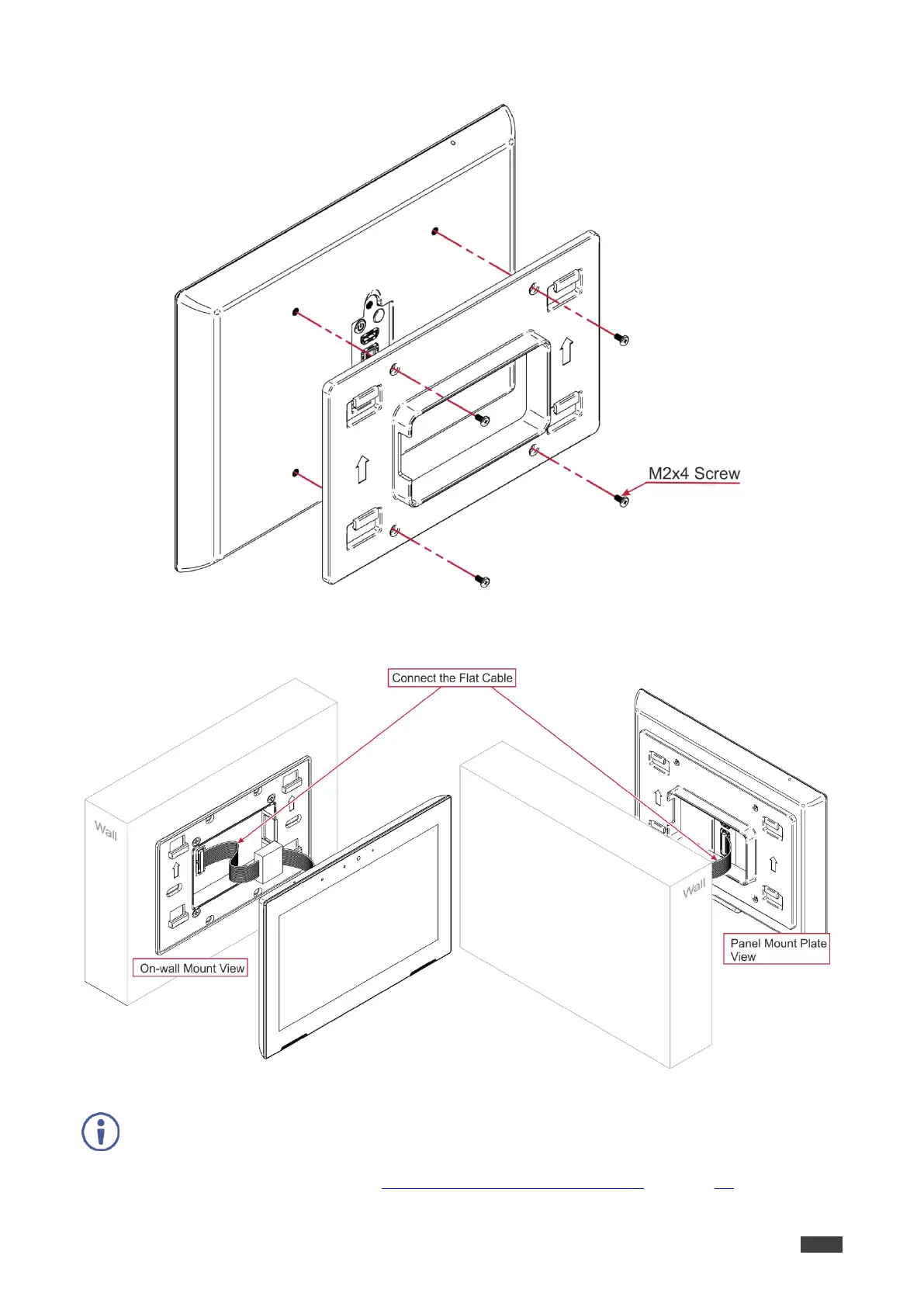

Figure 13: Attaching the Panel Mount Plate to the Rear Side of the KT-107
5. Connect the flat cable between the on-wall mount and the KT-107.
Figure 14: Connecting the On-wall Mount Flat Cable
If you need to secure the KT-107 to the wall, use the Kramer KT-107-OWLK (purchased
separately).
For installation instructions, see Installing the On-Wall Secure Lock on page 19.
