VM-214DT – Operating the VM-214DT
10
IR Pass-Through Example 3

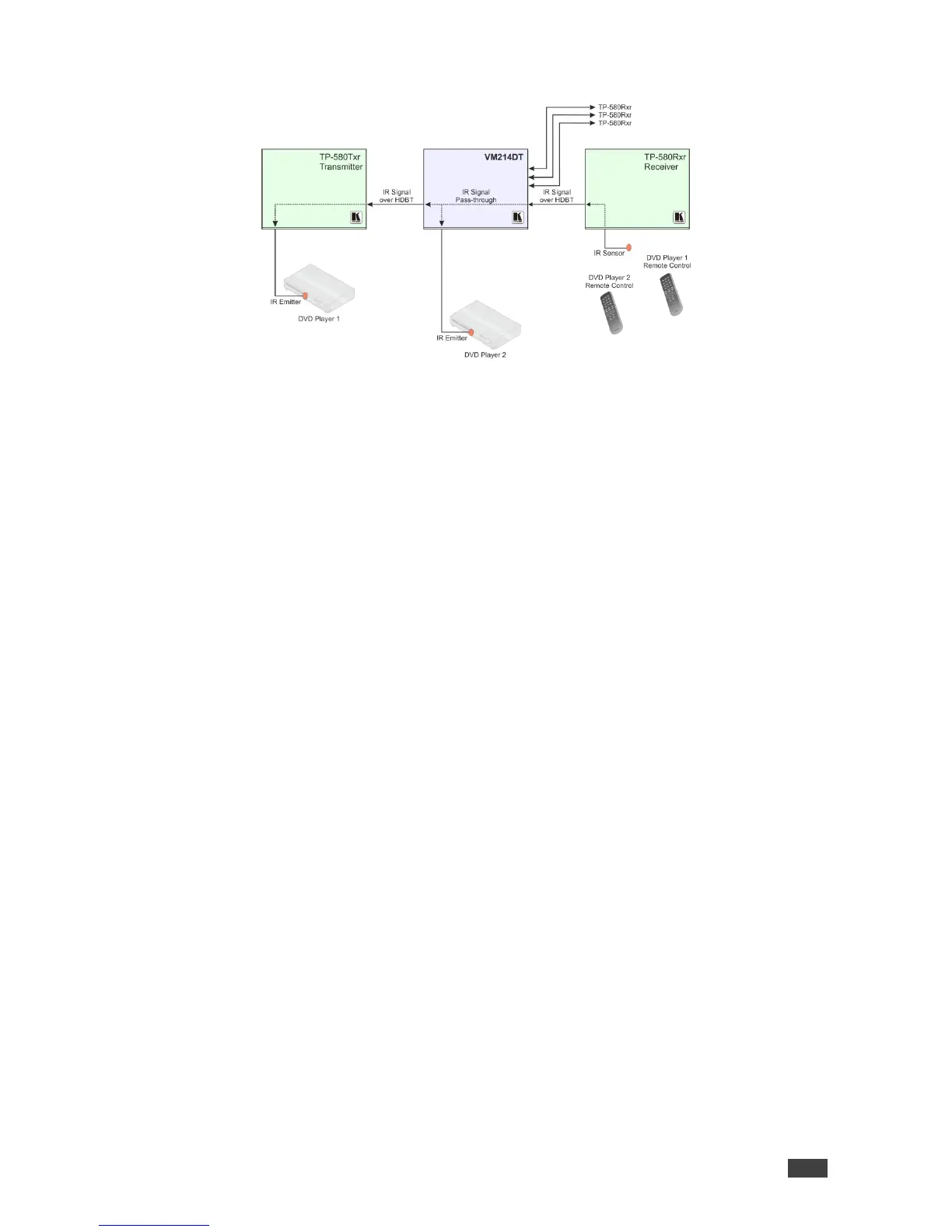

Figure 8: VM-214DT IR Pass-Through Example 3
• The first DVD player (player 1) is connected to the TP-580Txr transmitter via an IR emitter
• The second DVD player (player 2) is connected to the VM-214DT via an IR emitter
• An IR sensor is connected to the TP-580Rxr receiver
• Both the TP-580Txr and the TP-580Rxr are connected to the VM-214DT via TP cabling
To control DVD player 1, point the DVD player 1 IR remote control at the TP-580Rxr IR
sensor. To control DVD player 2, point the DVD player 2 IR remote control at the TP-580Rxr
IR sensor.
