Defining the VM-214DT
HDMI/HDBT Switcher/DA

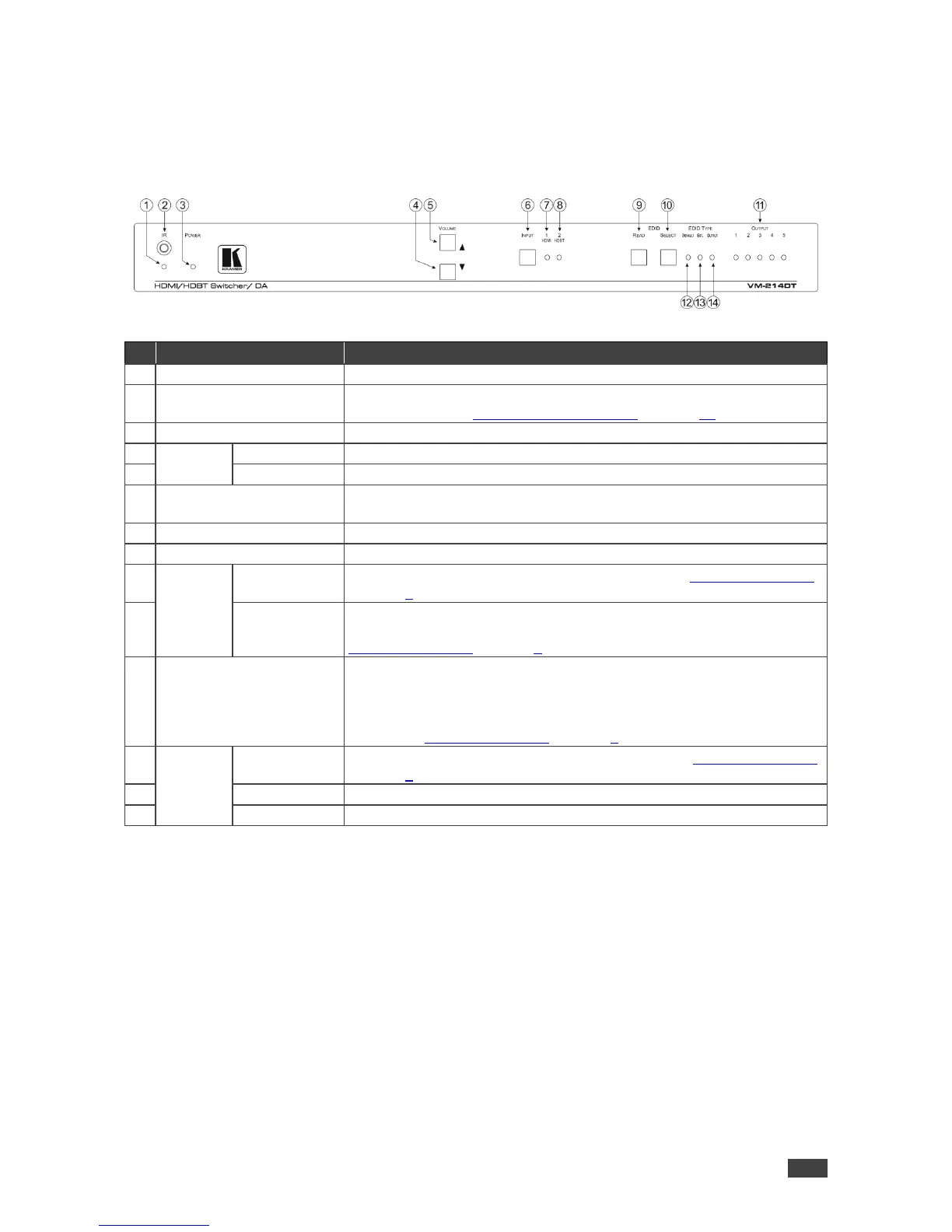

Figure 1: VM-214DT HDMI/HDBT Switcher/DA Front Panel
#
Feature
Function
1
IR LED
Lights yellow when receiving signals from the IR remote sensor
2
IR Remote Control Sensor
Sensor for an IR transmitter. IR data is routed according to the IR routing
configuration, (see The Data Switching Page on page 19)
3
POWER LED
Lights green when the unit receives power
4
VOLUME
Buttons
▼ Down button
Press to decrease the audio volume
5
▲ Up button
Press to increase the audio volume
6
INPUT Button
Press to toggle between HDMI Input 1 and HDBT Input 2. Lights red
when the input is valid, selected and routing to an output(s)
7
1 HDMI LED
Lights green when HDMI 1 Input is selected
8
2 HDBT LED
Lights green when HDBT 2 Input is selected
9
EDID
Buttons
READ Button
Press to read the selected EDID to both inputs, (see Acquiring the EDID
on page 8)
10
SELECT Button
Press to cycle through the EDID sources, (default, external, and each
output) from which to read the EDID. The relevant LED lights green, (see
Acquiring the EDID on page 8)
11
OUTPUT LEDs 1 to 5
In normal operation mode: lights green when an acceptor is connected to
the output.
In EDID mode: Indicates the EDID which is currently stored. The relevant
LED lights during EDID setup and remains lit after completing the EDID
setup, (see Acquiring the EDID on page 8).
12
EDID
TYPE
LEDs
DEFAULT
Lights green when the default EDID is selected, (see Acquiring the EDID
on page 8)
13
EXT.
Lights green when an external EDID is selected
14
OUTPUT
Lights green when one of the output EDIDs is selected
