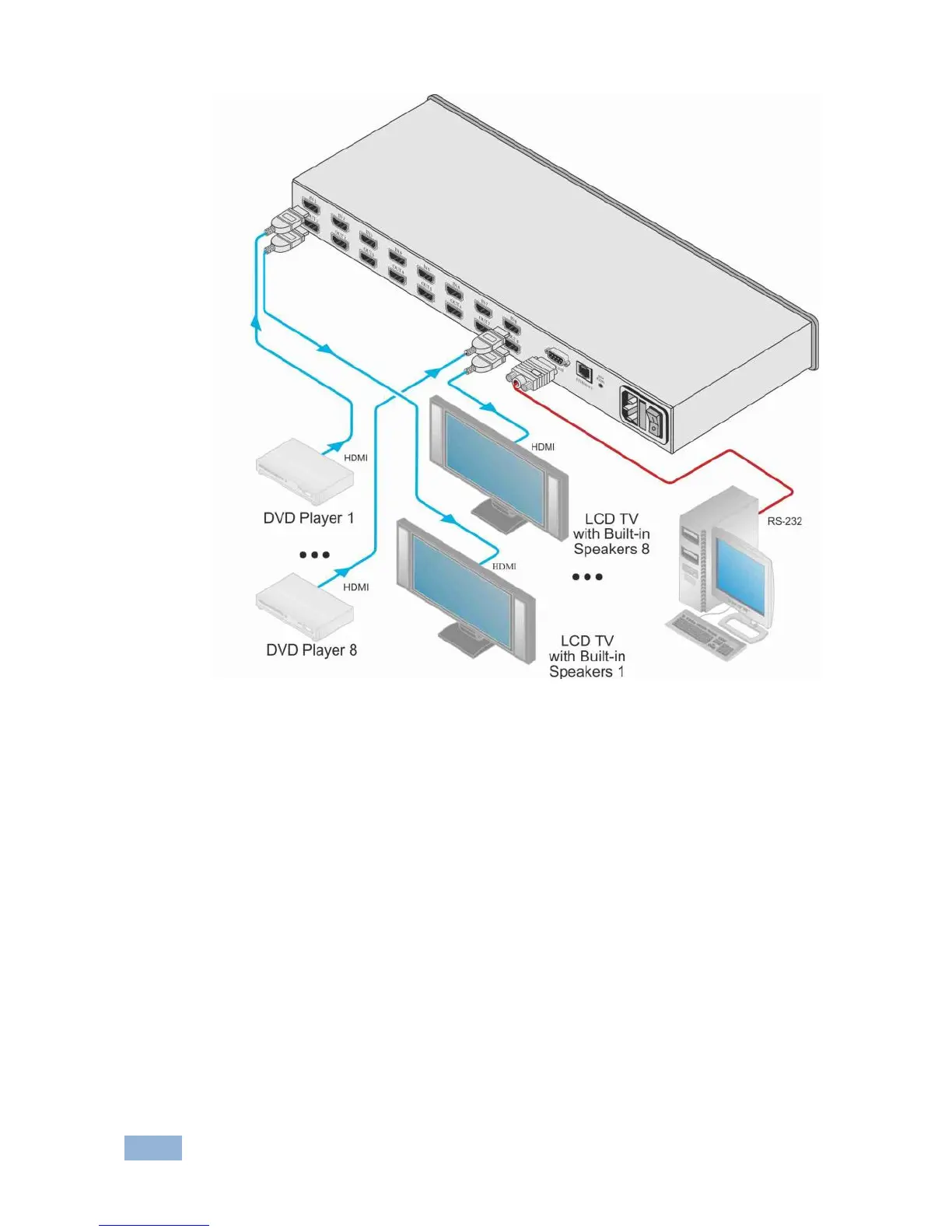

Figure 3: Connecting the VS-88H 8x8 HDMI Matrix Switcher
5.1 Connecting to the VS-88H via RS-232
You can connect to the VS-88H via an RS-232 connection using, for example, a
PC. Note that a null-modem adapter/connection is not required.
To connect to the VS-88H via RS-232:
Connect the RS-232 9-pin D-sub rear panel port on the VS-88H unit via a
9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5
need to be connected) to the RS-232 9-pin D-sub port on your PC
