VS-88H - Overview
5
VS-88H – Overview
5

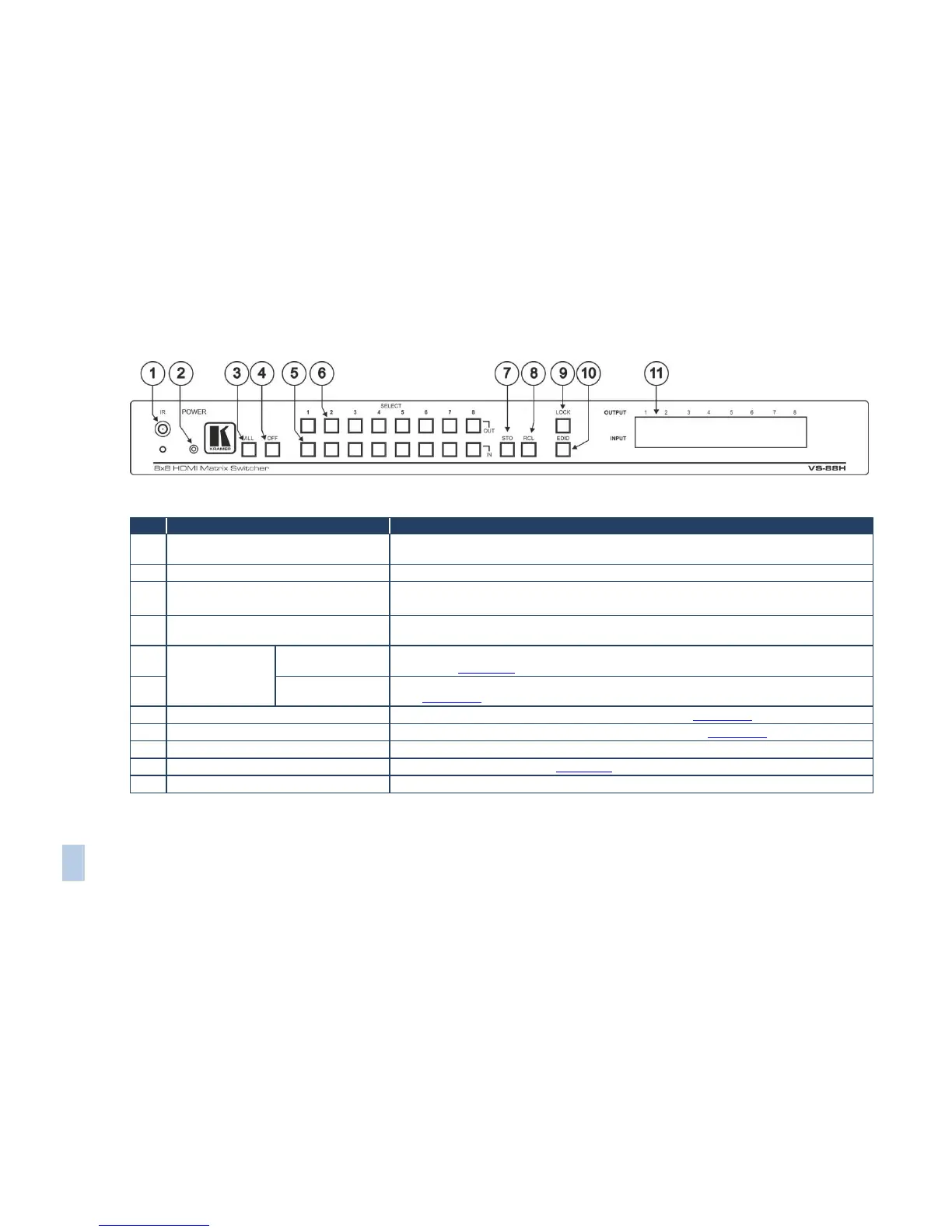

Figure 1: VS-88H 8x8 HDMI Matrix Switcher Front Panel
#
Feature
Function
1
IR Indication LED and Receiver
Lights yellow when receiving signals from the infrared remote control transmitter, signal
receiver for the infrared remote control transmitter
2
POWER LED
Lights when the device is turned on
3
ALL Button
Press followed by an input button to connect the selected input to all outputs
For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
4
OFF Button
Press after pressing an output button to disconnect the selected output from the inputs.
To disconnect all the outputs, press ALL followed by OFF
5
SELECT Buttons
IN (1 to 8)
Press to select the input to switch after selecting an output (also used for storing machine
setups (see Section 6.3)
6
OUT (1 to 8)
Press to select an output to switch followed by an input (also used for storing machine setups
(see Section 6.3)
7
STO Button
Press to store the current switching setting to a preset (see Section 6.3)
8
RCL Button
Press to recall the current switching setting from a preset (see Section 6.3)
9
LOCK Button
Press and hold to toggle the locking/release of the front panel buttons.
10
EDID Button
Press to capture the EDID (see Section 6.4)
11
OUTPUT/INPUT 7-segment LED Display
Displays the input currently switched to the output which is marked above each input
