VS-88H - Overview

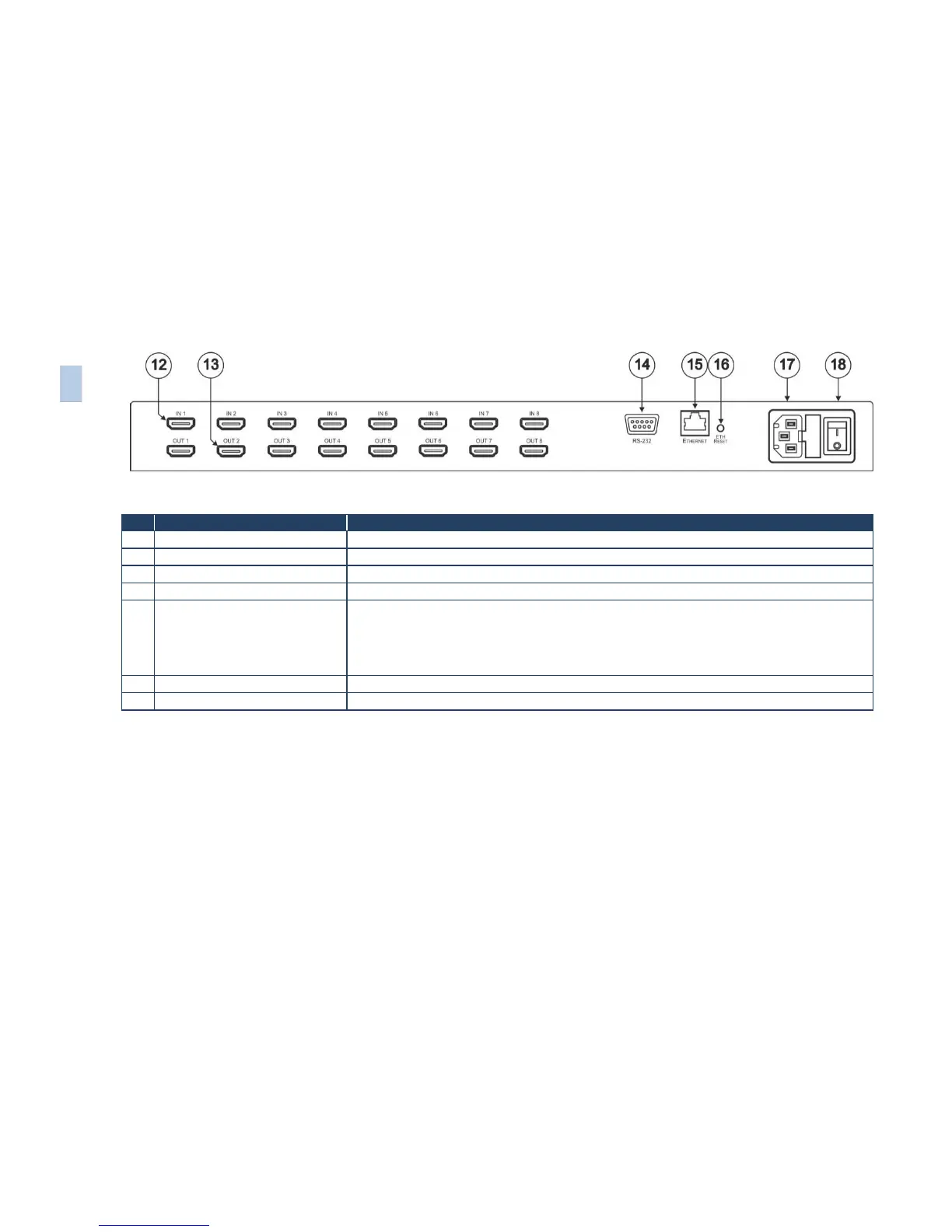

Figure 2: VS-88H 8x8 HDMI Matrix Switcher Rear Panel
#
Feature
Function
12
IN HDMI Connectors (1 to 8)
Connect to up to 8 HDMI sources
13
OUT HDMI Connectors (1 to 8)
Connect to up to 8 HDMI acceptors
14
RS-232 9-pin D-sub Port Connector
Connect to a PC/serial controller
15
ETHERNET RJ-45 Connector
Connect to a PC via a LAN
16
ETH RESET Button
Press to reset to the factory default IP parameters:
IP number  192.168.1.39
Mask – 255.255.255.0
Gateway – 192.168.1.1
Depress the button while powering on the device. The device powers up with the factory default IP parameters
17
Mains Power Connector and Fuse
Connect to the mains power
18
Mains Power Switch
Switch for turning the device on or off
