50
4.3 Installation of scaffold

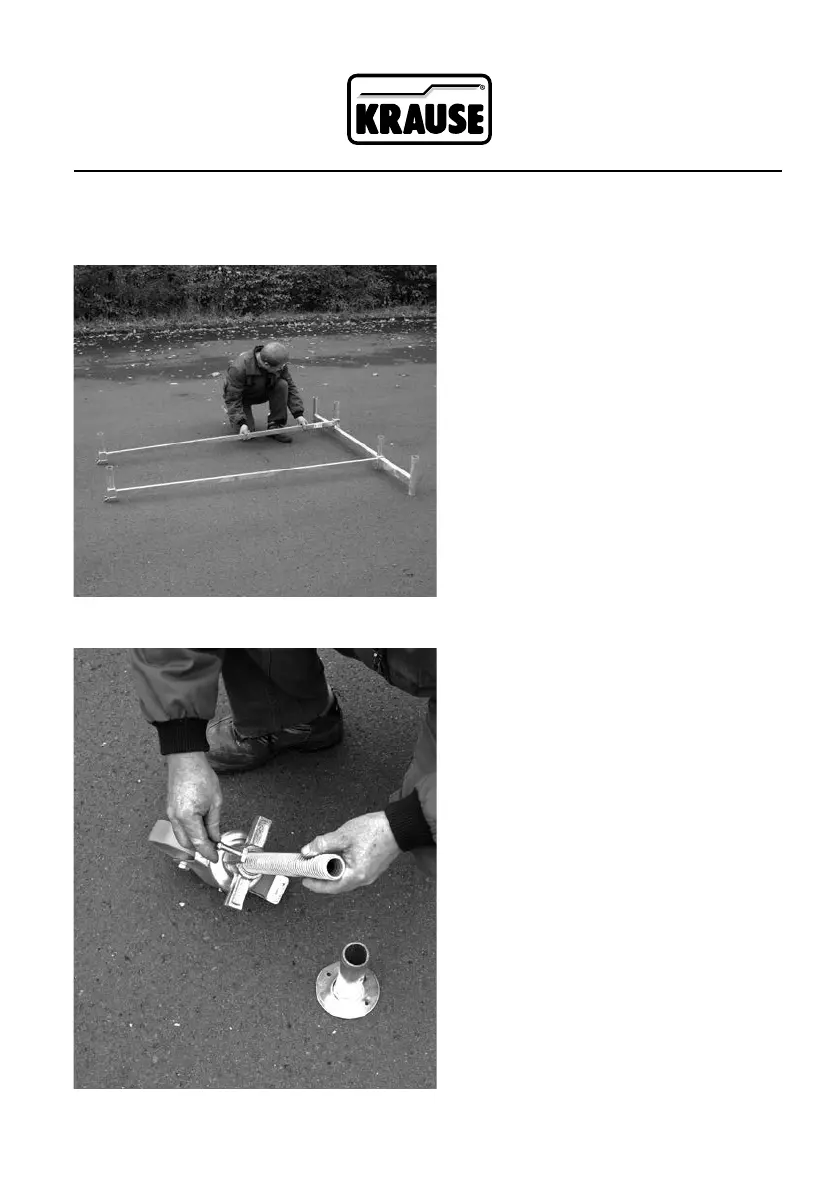

Step 1
Place the two stabilisers and the two
base braces on the ground, remove the
screws and mount the base braces to
the upright extensions of the stabilisers.
The base braces must have a distance
of approx. 70 cm to each other and
should if pos-sible be at equal
distances from the centre of the frame
(see picture). The mounted base
braces link the traverse ensuring
proper upright position of the scaffold.
Step 2
Remove the screws of the castors,
place the foot plates over the spindles
of the castors and tighten the wing
screws again with a few revolutions.
