60
30°
Installation option with
outriggers

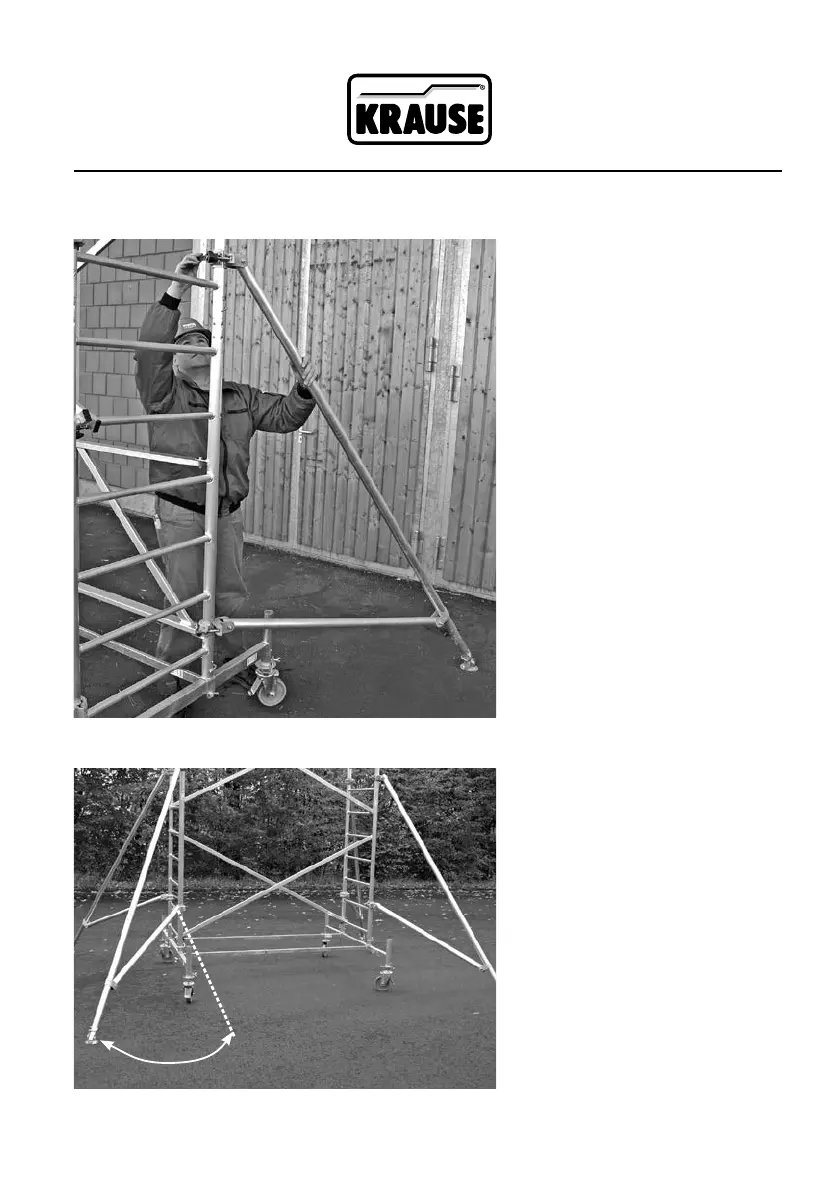

Mount the outriggers as shown
in the picture to the left. The
securing couplings with shells
of the outriggers are designed
to prevent torsion and twisting
and must be hand-tightened.
The outriggers must be
mounted at an angle of approx
30° to the stabiliser (see picture
below).
Installation option with
4 outriggers
The 4 feet of the outriggers
must be placed on rm ground.
If necessary, use sturdy base
inserts.
Note:
The outriggers feature telescopic
base plates that can be adjusted
from 75 to 25 mm and secured
with a gravity pin.
4.4 Installation options
