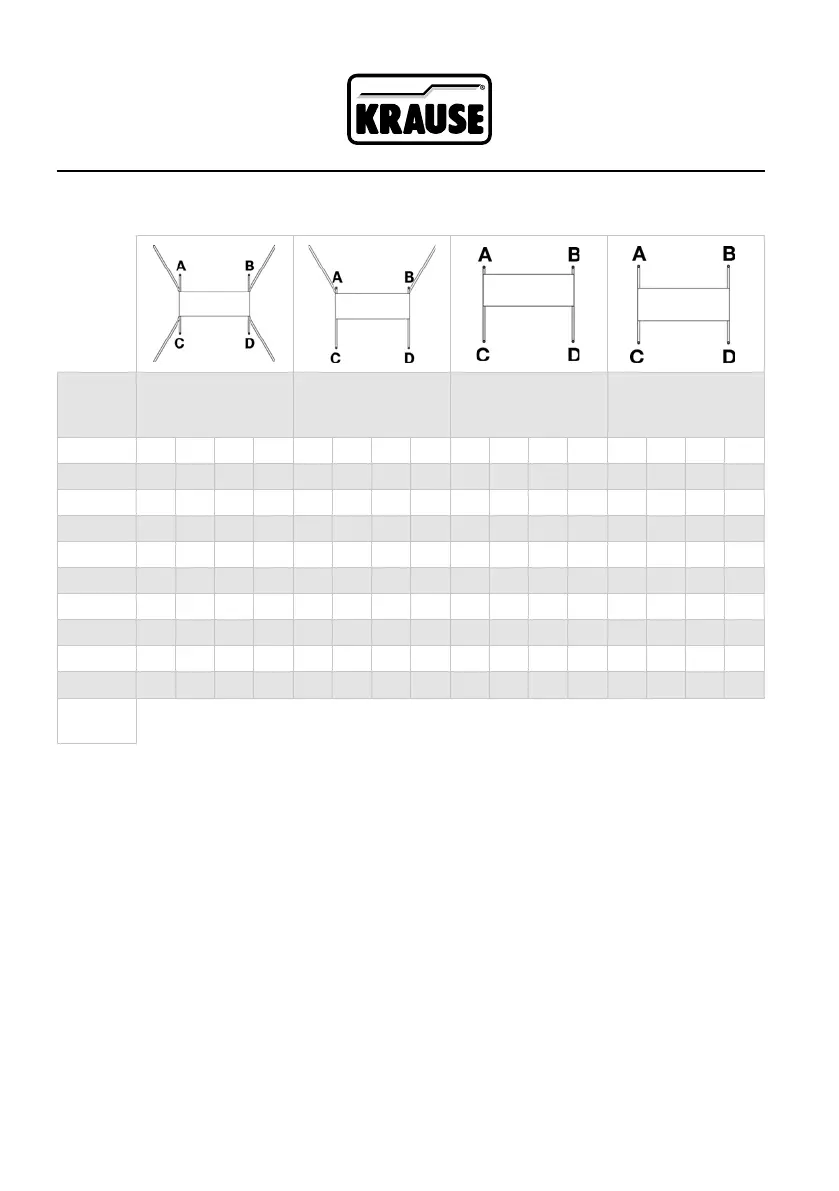

Ballast loads for indoor installation
The table shows the number of ballasts to be placed on the stabiliser of the scaffold,
depending on the scaffold height and design. Example: Scaffold centred on stabiliser,
without outriggers, standing height 4.80 m: 4 ballasts of 10 kg each must be placed on
each ballast receptacle (4 in total).
Standing
height
in m
Scaffold centred on
stabiliser with
4 outriggers
Scaffold to one side
on stabiliser
with 2 outriggers
Scaffold to one
side on stabiliser
Scaffold centred
on stabiliser
A B C D A B C D A B C D A B C D
2.3 0 0 0 0 0 0 0 0 1 1 2 2 1 1 1 1
3.3 0 0 0 0 0 0 0 0 2 2 3 3 2 2 2 2
4.3 0 0 0 0 1 1 0 0 3 3 4 4 3 3 3 3
5.3 0 0 0 0 1 1 0 0 3 3 5 5 4 4 4 4
6.3 0 0 0 0 3 3 0 0 4 4 6 6 5 5 5 5
7.3 0 0 0 0 4 4 1 1 x x x x 6 6 6 6
8.3 1 1 1 1 5 5 1 1 x x x x x x x x
9.3 1 1 1 1 6 6 1 1 x x x x x x x x
10.3 1 1 1 1 x x x x x x x x x x x x
x = not
permitted
