Kreg KHI-XLPULL - Install a Handle on a Drawer

7
Operation (continued)
2

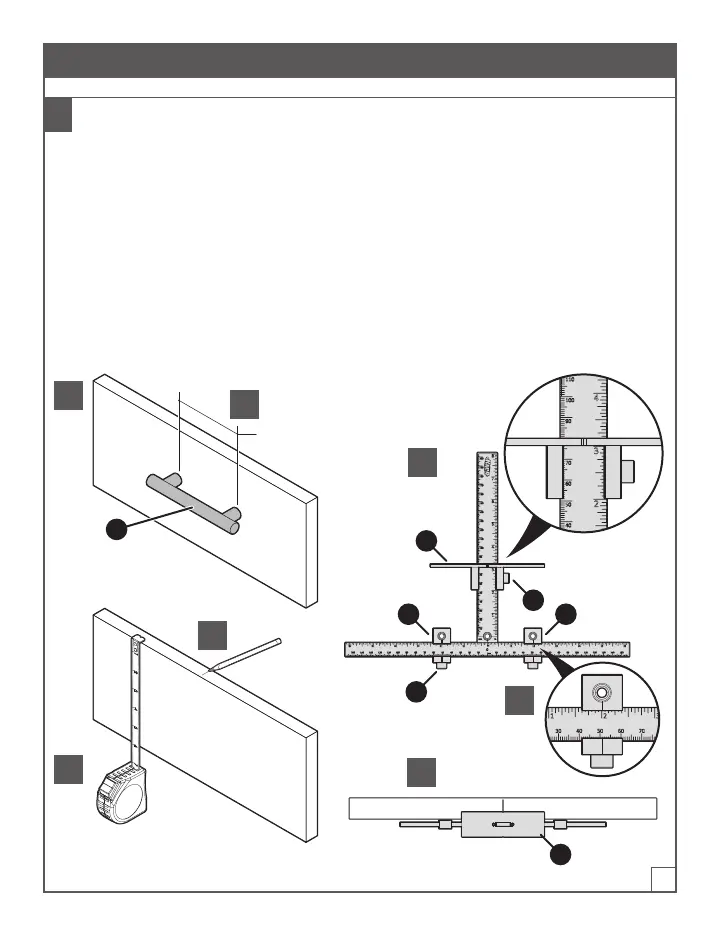

Install a Handle on a Drawer
a. Place the handle (3) to nd a position you want.
b. Measure the distance between the two handle attachments. For this example, the handle
attachments equal 4 in. (10.2 cm) center-to-center.
c. Mark the center on top of the drawer.
d. Measure the height of the drawer. For this example, the drawer height equals 6 in. (15.2 cm).
e. If centering, set the bottom of the Alignment Stop (C) at half of the height of the drawer (e.g.,
3 in. (7.6cm)) and tighten the Thumb Screw (G).
f. Set the Adjustable Drill Guides (E) at half of width of the handle attachments (e.g., 2 in.
(5.1cm)) and tighten the Thumb Screws (G).
g. Line up the notch on the center of the Alignment Stop (C) with the center mark on the top of
the drawer.
2g
2f
2e
C
E
C
G
G
E
2c
2b
2d
3
2a
4 in.
(10.2 cm)
