Kreg KMA3225 - Assembly; Onboard Tool Storage; Set the Stop Collar on the Drill Bit

4
Onboard Tool Storage

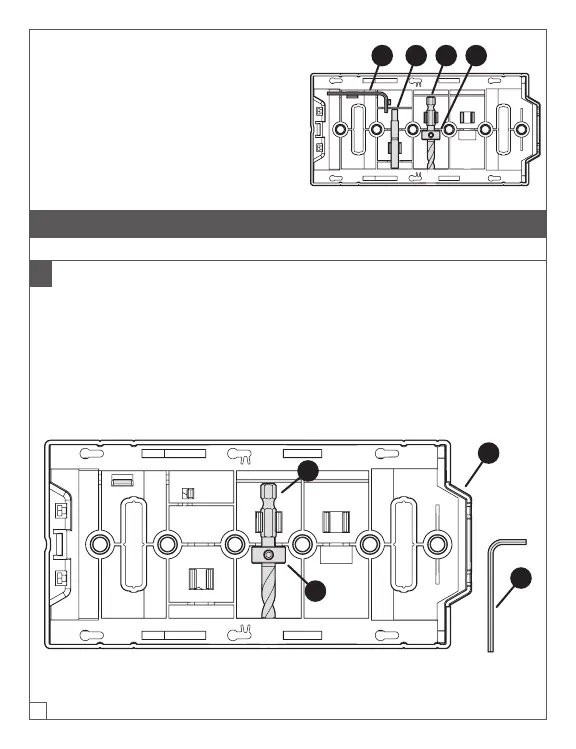

The jig (A) provides onboard storage
for these items:
■ Hex wrench (G)
■ Indexing pin (E)
■ Drill bit (C) with
stop collar (D) attached
Assembly
1
Set the Stop Collar on the Drill Bit
a. Slide the stop collar (D) onto the drill bit (C).
b. Place the drill bit (C) and stop collar (D) into the storage slot on the back of the
jig (A).
c. Slide the end of the drill bit (C) into the hole on the edge of the storage slot until
it stops.
d. Position the stop collar (D) into the recess of the storage slot.
e. Use the hex wrench (G) to tighten the set screw in the stop collar (D).
C
D
A
G
G DCE
