6 TECHNICAL DATA
48
OPTIMASS 7000
www.krohne.com 10/2015 - 4001016303 - MA OPTIMASS 7000 R03 en

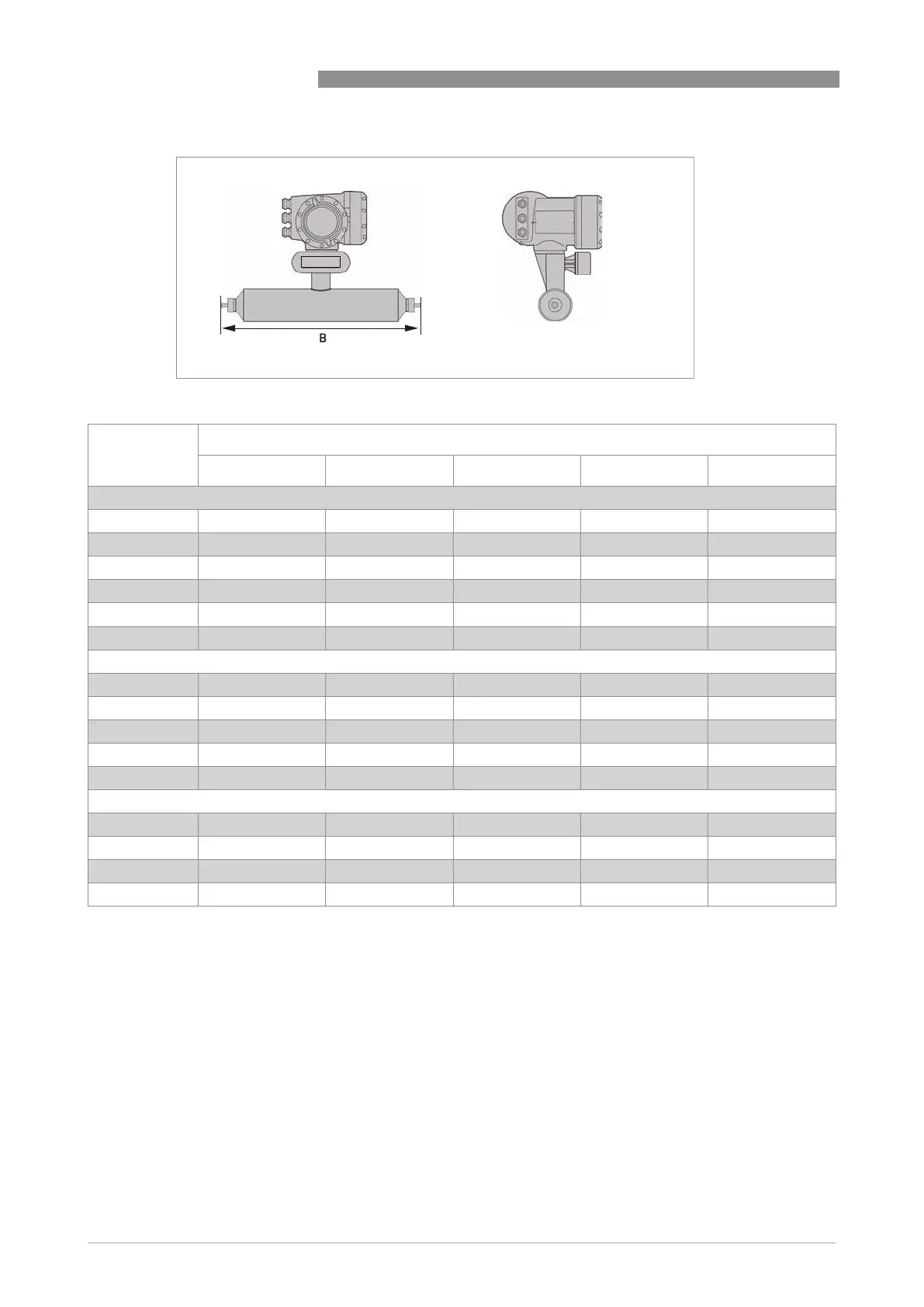

Hygienic connections: adapter versions (Tri-Clover & Tri-clamp)
Dimension B [mm]
T/S 10 T/S 15 T/S 25 T/S 40 T/S 50
Tri-clover
Tri-cloverTri-clover
Tri-clover
½" 597 ±2 - - - -
¾" - 635 ±2 - - -
1" - 665 ±2 - - -
1½" - - 855 ±2 - -
2" - - - 1077 ±2 -
3" - - - - 1355 ±2
Tri-clamp DIN 32676
Tri-clamp DIN 32676Tri-clamp DIN 32676
Tri-clamp DIN 32676
DN10 590 ±2 - - - -
DN15 - 628 ±2 - - -
DN25 - - 787 ±2 - -
DN40 - - - 1017 ±2 -
DN50 - - - - 1193 ±2
Tri-clamp ISO 2852
Tri-clamp ISO 2852Tri-clamp ISO 2852
Tri-clamp ISO 2852
1" - 665 ±2 - - -
1½" - - 855 ±2 - -
2" - - - 1077 ±2 -
3" - - - - 1355 ±2
