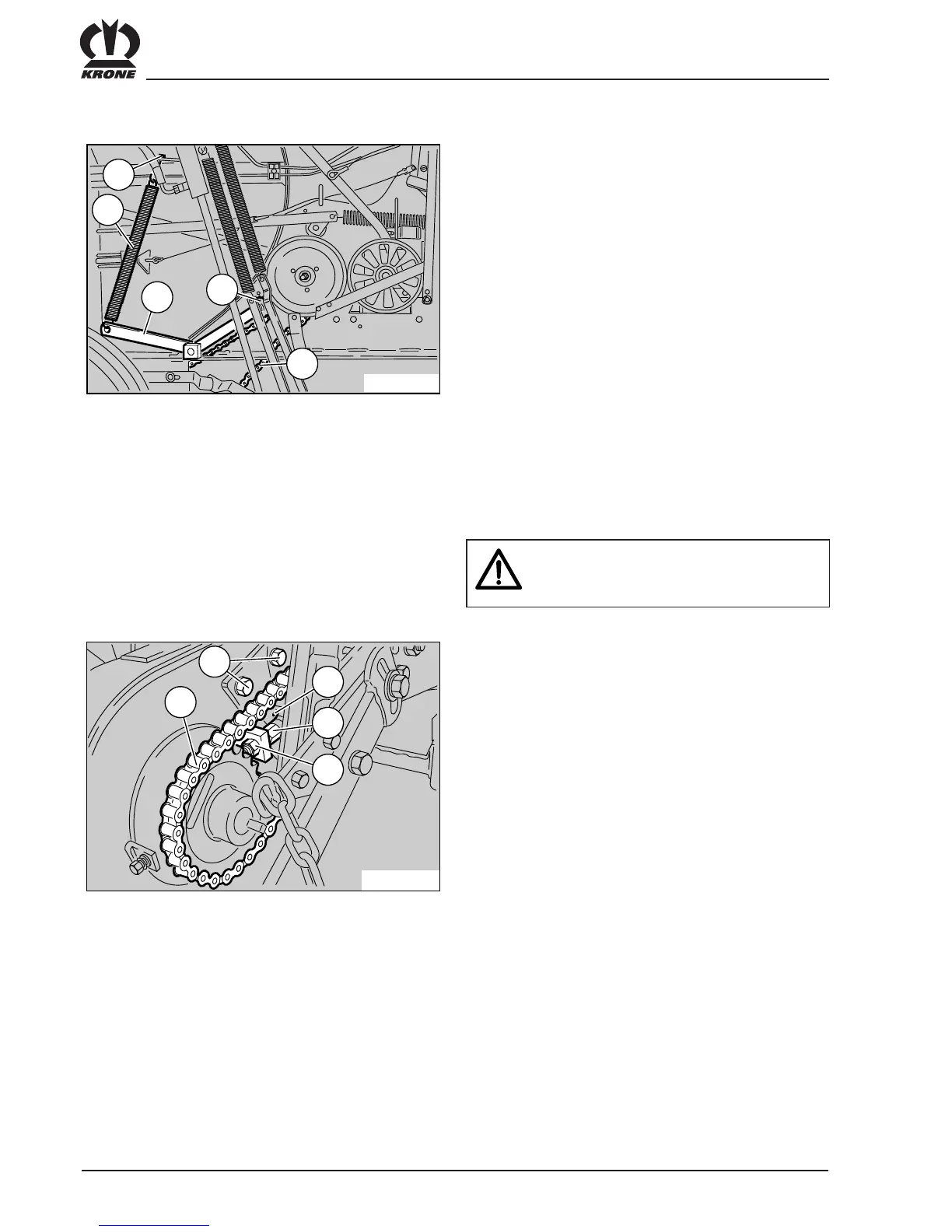

7.5.3 Roller Drive
The drive for the roller is on the right hand side of the
machine.
Tightening the Drive Chain
A continuous tensile force is exerted by the compression
spring (2) via the reversing lever (3) and the chain
tensioning wheel (4) on the drive chain (5). To adjust the
chain tension undo the self-locking nuts on the adjusting
screw (1). Twist the adjusting screw until the desired
chain tension has been reached. Tighten up the self-
locking nuts again.
Oiling the Drive Chain
Oil the drive chain with plant-based oil every 24
operating hours.
7.5.4 Pick Up
Lower the pick up to the ground. Take
care - risk of crushing!
Drive Chain
The drive for the pick up is on the left hand side of the
machine.
Tightening the Drive Chain
Undo the screws (2) on the left hand side of the pick up.
There is another screw located under the mount (3) for
the chain tensioner, which must also be undone. Undo
the self-locking nut (5). Tighten the drive chain with the
adjusting screw (4). Tighten up the self-locking nut again
as well as the other screws undone.
Oiling the Drive Chain
Oil the drive chain with planr-based oil every 24
operating hours.
KR-0-135
1
2
3
5
4
KR-0-136
5
3
2
1
4
