12. Special Equipment
12.1 Electronic Final Pressure Gauge
• The final pressure gauge may only be mounted on the tractor when the engine is switched
off and the ignition key has been removed.
• Secure the tractor and the round baler from rolling away.
• When mounting the electronic final pressure gauge, make sure that the connection cable is
not under tension and does not come into contact with the tractor wheels when driving
round corners.
• Disconnect the power supply cable when welding on the tractor and round baler. Too high a
voltage can cause damage to the electronic final pressure gauge.

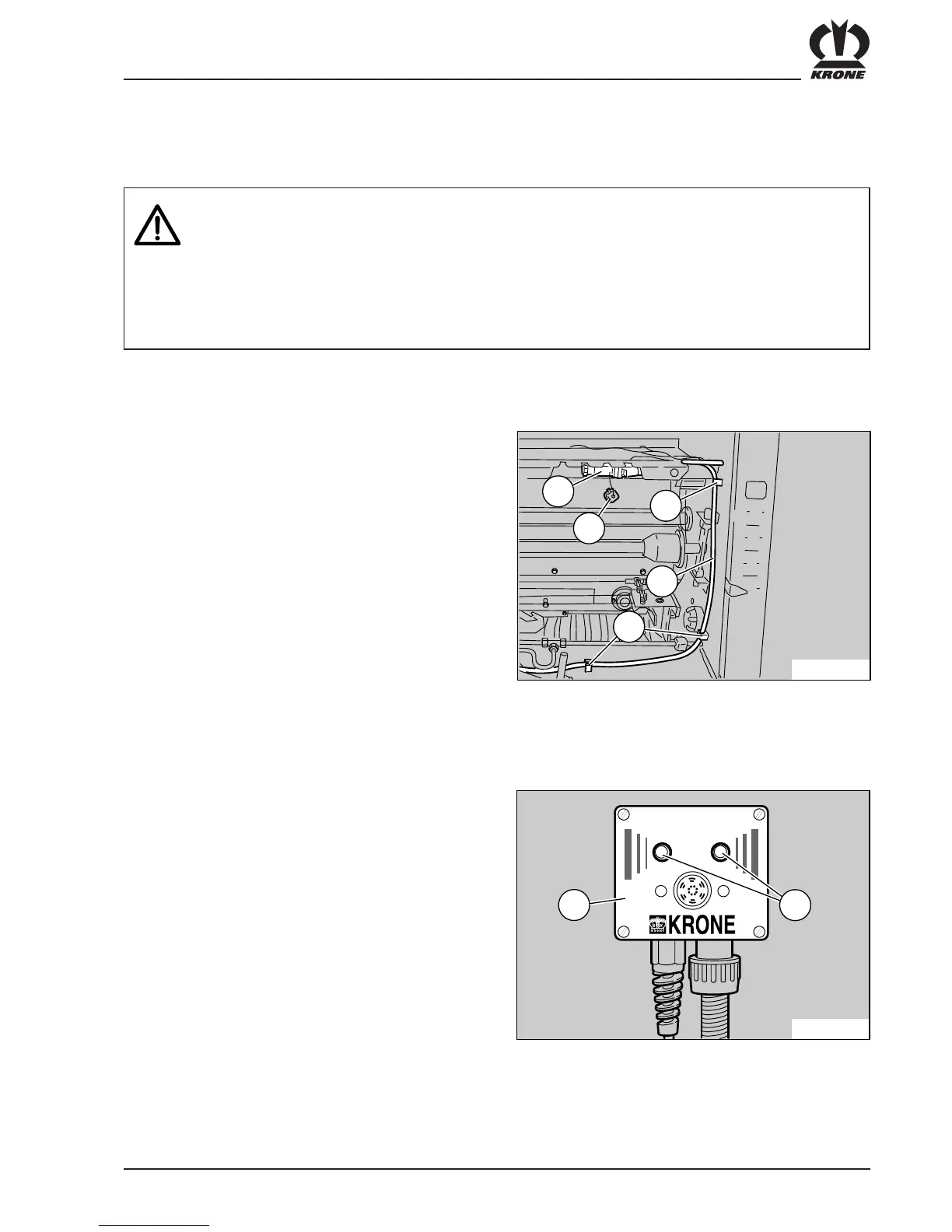

As soon as the bale has reached the pre-selected baling
pressure shown on the pre-selected pressure gauge, a
horn signal sounds and the two indicator lamps (2) on
the final pressure gauge (1) are extinguished.The bale
can then be wrapped.
Attach the electronic final pressure gauge to the tractor
in the driver's field of view using a magnet and connect
to the round baler with a cable (3) to the socket (1) in the
electronic final pressure gauge. Secure the plug with a
bar. Attach the connection cable to the round baler with
the cable clip (2). A second cable provides the power
supply (12 volt). Plug this into the cigarette lighter. If the
round baler is operated without an electronic final
pressure gauge, seal the socket with the protective cap
(4).
