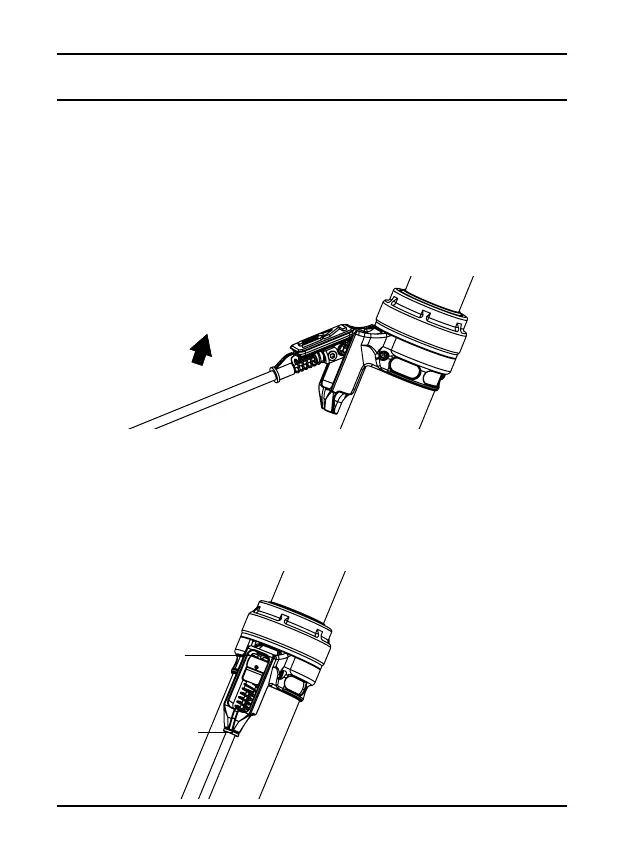

CONNECTING THE CABLE TO THE SEATPOST
If the cable junction cover is installed, please carefully remove it
now. You may need to insert a small (1-2mm) rod such as a paper
clip or small Hex wrench to gently lift the end of the cover or if you
are adjusting the cable length and the cable is already installed,
pull the cable out and lift up.
With the cable junction box open, locate the Cable Clamp within.
Slide the cable barrel into the slotted end of the Cable Clamp until
the inner wire is seated in the center slot and both halves of the
cable barrel are supported by the Cable Clamp.
10
CABLE INSTALLATION
Cable Junction
Cable Clamp
Cable Barrel
To Next Page
