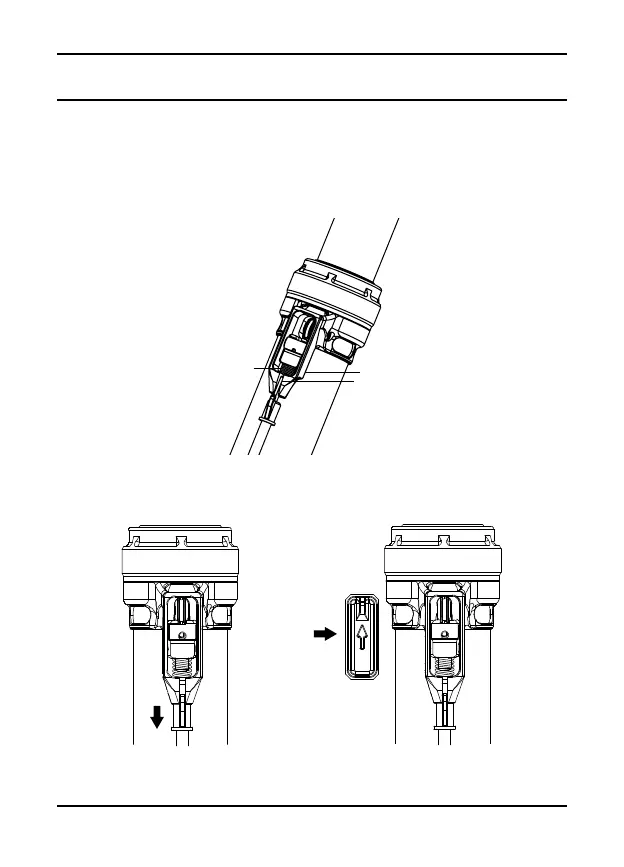

Ensure that the spring is seated fully within the cable junction box.
Pull the inner wire and cable housing against the spring until you
are able to slide the barbed ferrule into the slotted guide at the
base of the cable junction box.
Reinstall the junction box cover. Please observe the directional
indicator found on the inside of the cap.
The barb in the barbed ferrule is designed to fit within a small
indent at the base of the junction box cover.
11
CABLE INSTALLATION
Cable Junction Box
Spring
Ferrule
Junction Box Cover
