4mm
8 N-m
4mm
8 N-m
Head Clamp Bolts
Head Clamp Bolts
Saddle Rails
Lower Floating Clamp
Spherical NutsSpherical Nuts
Upper Floating Clamp
See note below
6

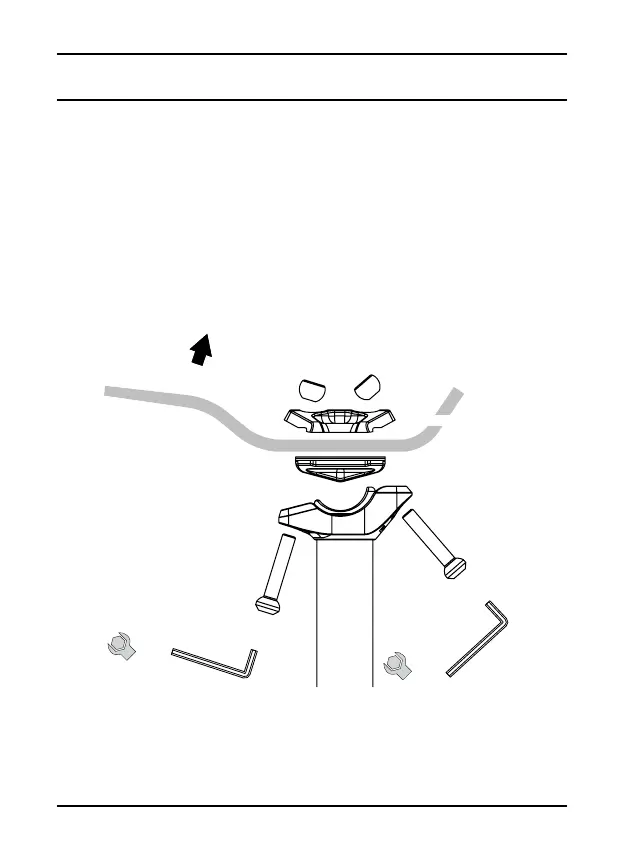

SADDLE INSTALLATION
When the desired seatpost orientation is determined and the
saddle head clamp parts have been aligned with the front of the
bicycle, the saddle can then be installed.
To install the saddle, replace the two saddle head clamp bolts,
spherical nuts, upper and lower floating clamp in the order in
which they were removed.
Before tightening, place the rails of your saddle between the
upper and lower floating clamps so that the rails seat in the
channel provided by the lower floating clamp.
Using a 4mm hex wrench, tighten the two head clamp bolts to the
maximum torque indicated on your KS dropper post head clamp.
Torques may vary by model.
See note below
