WITH STANDARD GRIP
Using a 3mm Hex wrench, loosen the remote lever clamp pinch
bolt and remove the bolt. Open the hinged lever clamp and
position it in the desired location on your handlebar. Close the
clamp and install the pinch bolt. Tighten to a maximum torque of
5 N-m (LEV alloy remote) and 1N-m (LEV Integra polycarbonate
remote).
WITH ODI LOCK-ON
TM
COMPATIBLE GRIP
The alloy remote lever clamp can be used to replace the inner
lock ring on ODI LOCK-ON
TM
compatible grips. Remove the inner
lock ring on your grip. Replace with the seat post remote lever
clamp. Follow the instructions above. NOTE: Polycarbonate
remote lever clamp is not hinged and not compatible with ODI
LOCK-ON
TM
compatible grips.
7

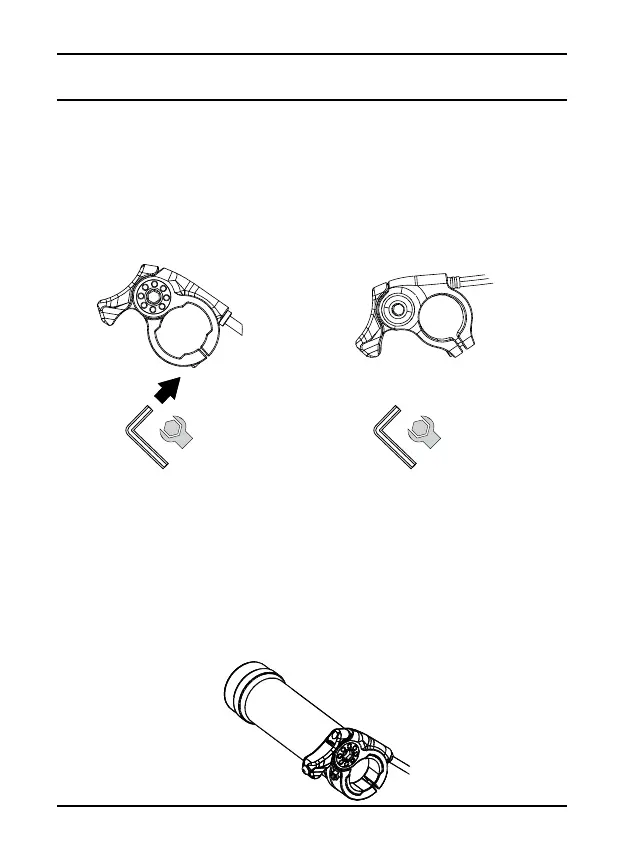

REMOTE LEVER INSTALLATION
4-5 N-m 1 N-m
Pinch Bolt
Hinged
Lever Clamp
Non-hinged
Lever Clamp
