RWCP, RWCN
6

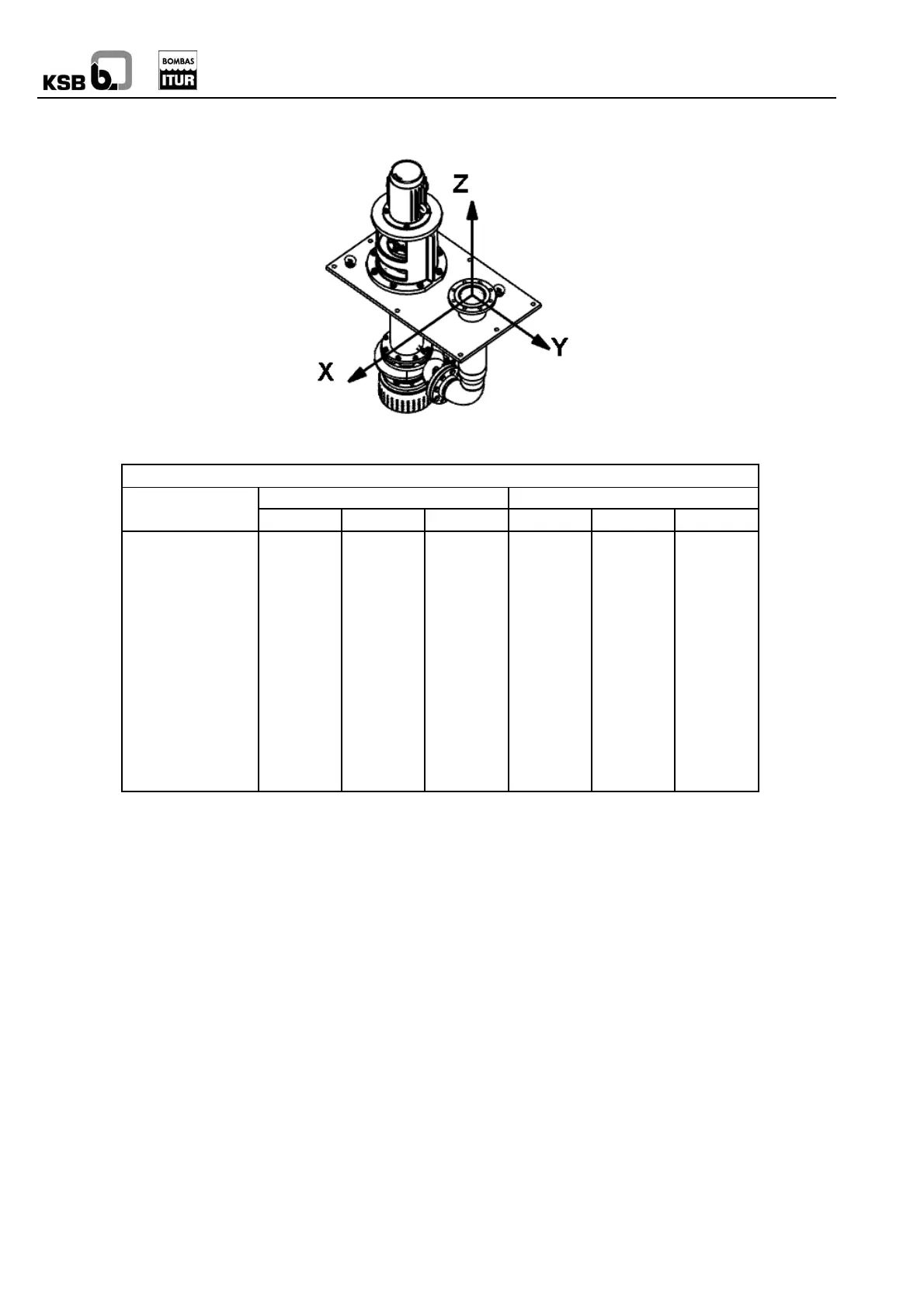

4.4 Forces and moments permitted
Maximum permitted strain in the upper discharge flange, RWCP series exclusively
Force [N] Moment [N·m]
DN
Fz Fx Fy Mz Mx My
32 – 1 ¼” 630 510 540 450 510 660
40 – 1 ½” 750 600 660 540 630 780
50 – 2” 990 810 900 600 690 840
65 – 2 ½” 1260 1020 1110 660 720 900
80 – 3” 1500 1230 1350 690 780 960
100 – 4” 2010 1620 1800 750 870 1050
125 – 5” 2370 1920 2130 900 1140 1260
150 – 6” 3000 2430 2700 1050 1230 1500
200 – 8” 4020 3240 3600 1380 1590 1950
250 – 10” 5010 4050 4470 1890 2190 2670
300 – 12” 6000 4830 5370 2580 2970 3630
350 – 14” 6990 5640 6270 3300 3810 4650
400 – 16” 7980 6450 7170 4140 4770 5820
The RWCN series does not admit any strain on the discharge flange.
