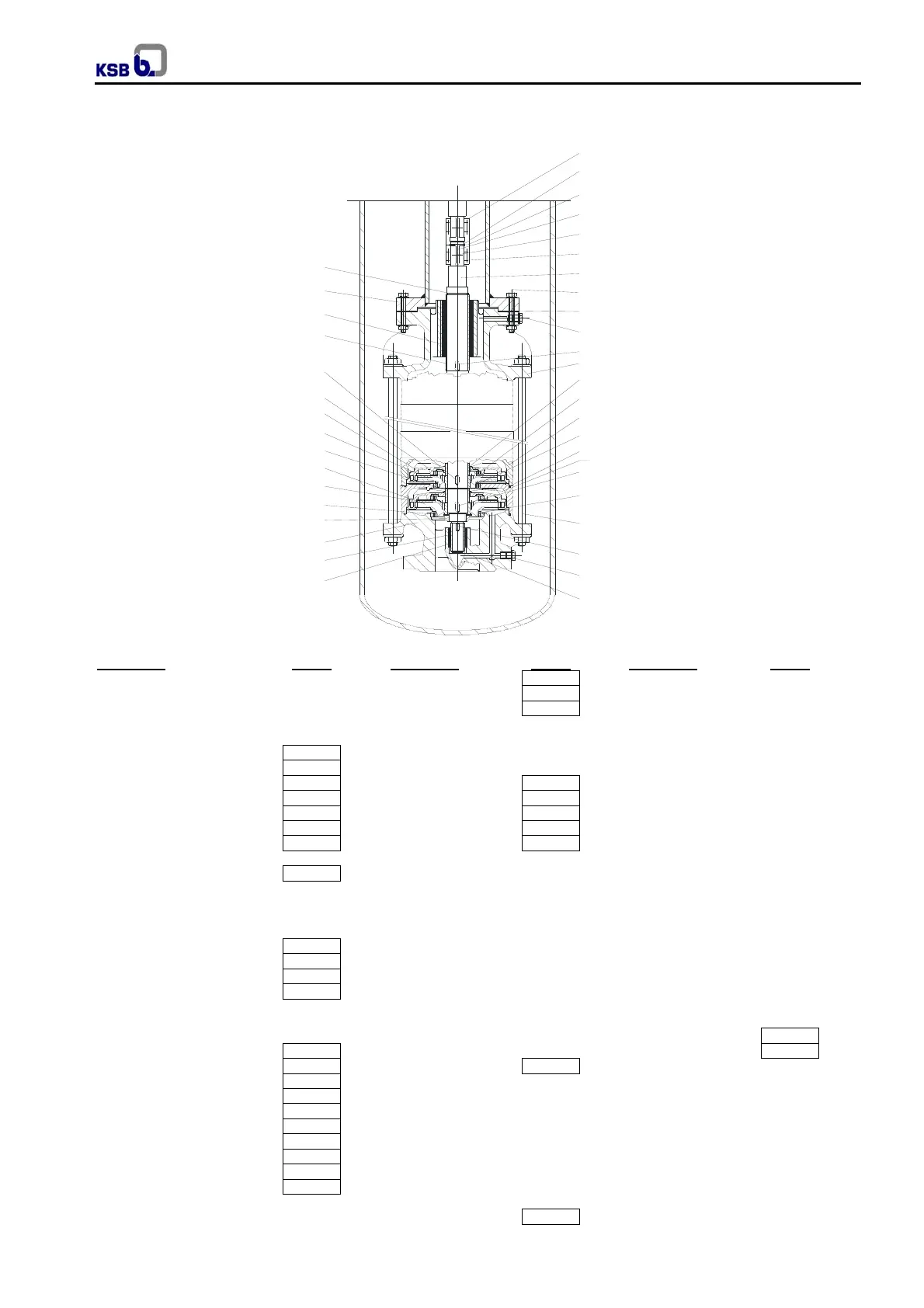

Sectional drawing (part 2/2) - reference
Main parts list
Description Part nº Description Part nº Description Part nº
Distributor casing 10-1 *) Casing wear ring 502.2 Stud 902.3
Suction can 10-3 Impeller wear ring 503.1 Stud 902.4
Suction casing 106 Impeller wear ring 503.2 Stud 902.5
Discharge casing 107 Oil thrower 508 Stud 902.7
Stage casing 108 Stage sleeve 521.1 Stud 902.9
Diffuser 171.1 Stage sleeve 521.2 Threaded plug 903.1
Diffuser 171.2 Stage sleeve 521.3 Threaded plug 903.2
Pump shaft 211 Centering sleeve 526 Threaded plug 903.4
Intermediate shaft 212 *) Bearing sleeve 529.1 Threaded plug 903.5
Drive shaft 213 *) Bearing sleeve 529.2 Threaded pin 904.1
Impeller 230 Bearing bush 545.1 Threaded pin 904.2
Suction impeller 231 Bearing bush 545.2 Threaded pin 904.11
Deflector 270 Disc 550.1 Tie bolt 905
Antifriction bearing 320 Disc 550.2 Socket head screw 914
Drive stool 341 Constant level oiler 638 Hex. nut 920.1
Bearing housing 350 Oil level pipe 641 Nut with two flats 920.2
Bearing cover 360 Oil level indicator 642 Hex. nut 920.3
Bearing spider 383 Venting 672 Hex. nut 920.4
Flat gasket 400.1 Coupling guard 681 Hex. nut 920.6
Flat gasket 400.2 Pipe 710.1 Hex. nut 920.7
Flat gasket 400.3 Riser pipe 711.1 Hex. nut 920.9
Flat gasket 400.4 Riser pipe 711.2 Hex. nut 920.11
Joint ring 411.1 Pipe double nipple 720.1 Bearing nut 923.1
Joint ring 411.2 Pipe double nipple 720.7 Bearing nut 923.2
Joint ring 411.3 Flange motor 801 Lock washer 931.1
Joint ring 411.4 Coupling 840 Lock washer 931.2
Joint ring 411.5 Muff Coupling 853 Circlip 932.1
Joint ring 411.6 Screw 900 Circlip 932.2
O-ring 412.1 Screw 900.1 Key 940.1
O-ring 412.2 Screw 900.3 Key 940.2
O-ring 412.3 Hex. head bolt 901.1 Key 940.3
Mechanical seal 433 Hex. head bolt 901.2 Key 940.4
Multiple ring 501.1 Hex. head bolt 901.3 Key 940.5
Multiple ring 501.2 Stud 902.1 Key 940.6
*) Casing wear ring 502.1
*) Additionally recommended spare parts Recommended spare parts
932.2
711.1
545.2
529.2
940.8
502.1
171.2
230
521.1
231
171.1
502.2
931.1
920.2
106
529.1
545.1
85
3
501.1
900.1
940.6
900.3
902.9
920.9
211
901.1
920.5
400.1
903.1
411.1
940.3
107
521.2
521.3
904.1
108
503.1
412.1
501.2
940.2
503.2
920.1
905
550.1
940.1
903.2
411.2
932.1
