15
(1) EPO key
(2) LCD panel : Display UPS data and status
(3) Front door lock
(4) Dustproof net plate
(5) Control unit
(6) Mains switch
(7) Output switch
(8) Maintenance switch
(9) Bypass switch
(10) Bypass module
(11) Mains-A input copper bar
(12) Mains-B input copper bar
(13) Mains-C input copper bar
(14) Input neutral copper bar
(15) Battery negative copper bar
(16) Battery neutral copper bar
(17) Battery positive copper bar
(18) Output-A input copper bar
(19) Output-B input copper bar
(20) Output-C input copper bar
(21) Output neutral copper bar
(22) Bypass-A input copper bar : Wiring must be used when mains-bypass separation
(23) Bypass-B input copper bar : Wiring must be used when mains-bypass separation
(24) Bypass-C input copper bar : Wiring must be used when mains-bypass separation
(25) Phase A mains-bypass common input connect copper bar
(26) Phase B mains-bypass common input connect copper bar
(27) Phase C mains-bypass common input connect copper bar

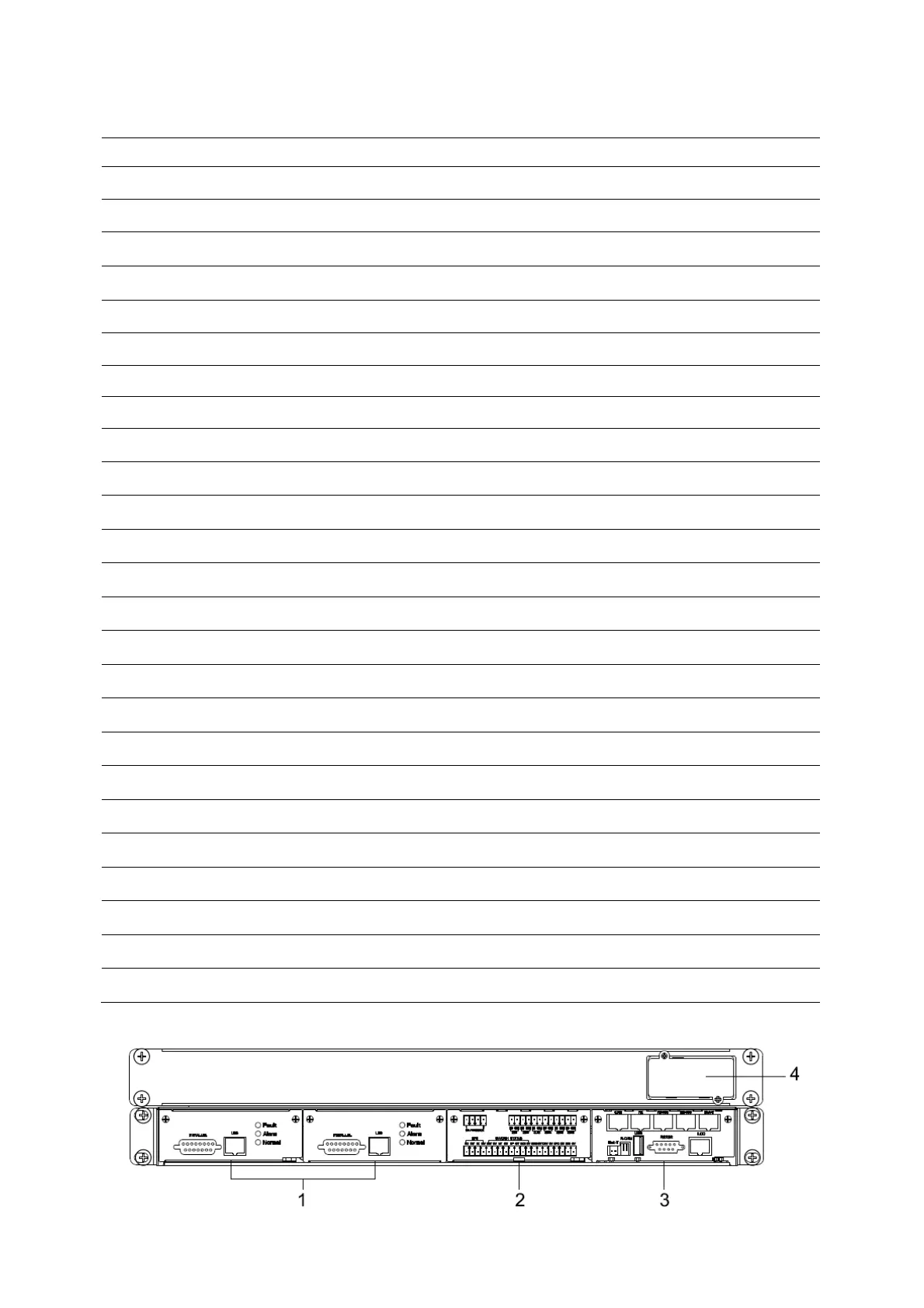

Control unit
