67
Network Management Card replacement
SNMP card: internal SNMP / external SNMP optional
◆
Loosen the 2 torque screws (on each side of the card).
◆
Carefully pull out the card. Reverse the procedure for re-installation
The slot called SNMP supports the MEGAtec protocol. We advise that NetAgent II-3 port is
also a tool to remotely monitor and manage any UPS system

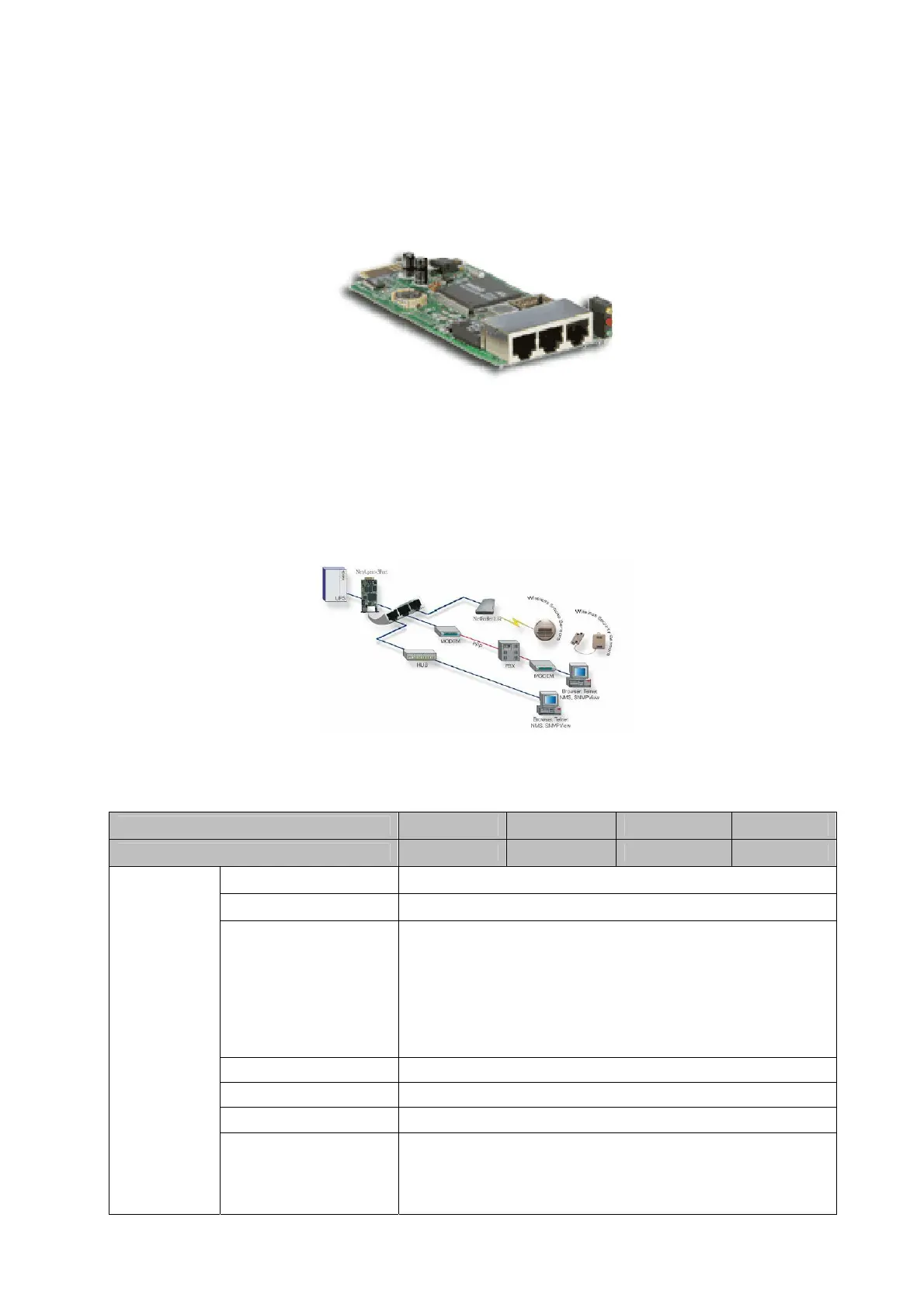

The overview of the SNMP card
NetAgent II-3Ports supports the Modem Dial-in (PPP) function to enable the remote control
via the internet when the network is unavailable.
In addition to the features of a standard NetAgent Mini, NetAgent II has the option to add
NetFeeler Lite to detect temperature, humidity, smoke and security sensors. Thus, making
NetAgent II a versatile management tool. NetAgent II also supports multiple languages and is
setup for web-based auto language detection.
Typical topology of the UPS Network Management
Appendix 1 Specifications
Model
100kVA 120kVA 150kVA 160kVA
Cabinet capacity (VA/W)
100k / 100k 120k / 120k 150k / 150k 160k / 160k
Input
Phase 3 Phase 4 Wires and Ground
Rated Voltage 380/400/415Vac
Voltage Range
138~485Vac
◆ At 40°C: The UPS works at full load when the voltage is
323–485Vac and is derated load when the
voltage is 323–138Vac
◆ At 30°C: The UPS works at full load when the voltage is
305–485Vac and is derated load when the
voltage is 305–138Vac
Frequency Range 40Hz-70Hz
Power Factor ≥0.99
Current THDi ≤3%(100% nonlinear load)
Bypass Voltage
Range
Max.voltage: 220V:+25 %( optional +10%, +15%, +20%);
230V:+20 %( optional +10%, +15%);
240V:+15 %( optional +10%);
Min. voltage:-45 %( optional -10%, -20%,-30%)
