77
Definition of port：

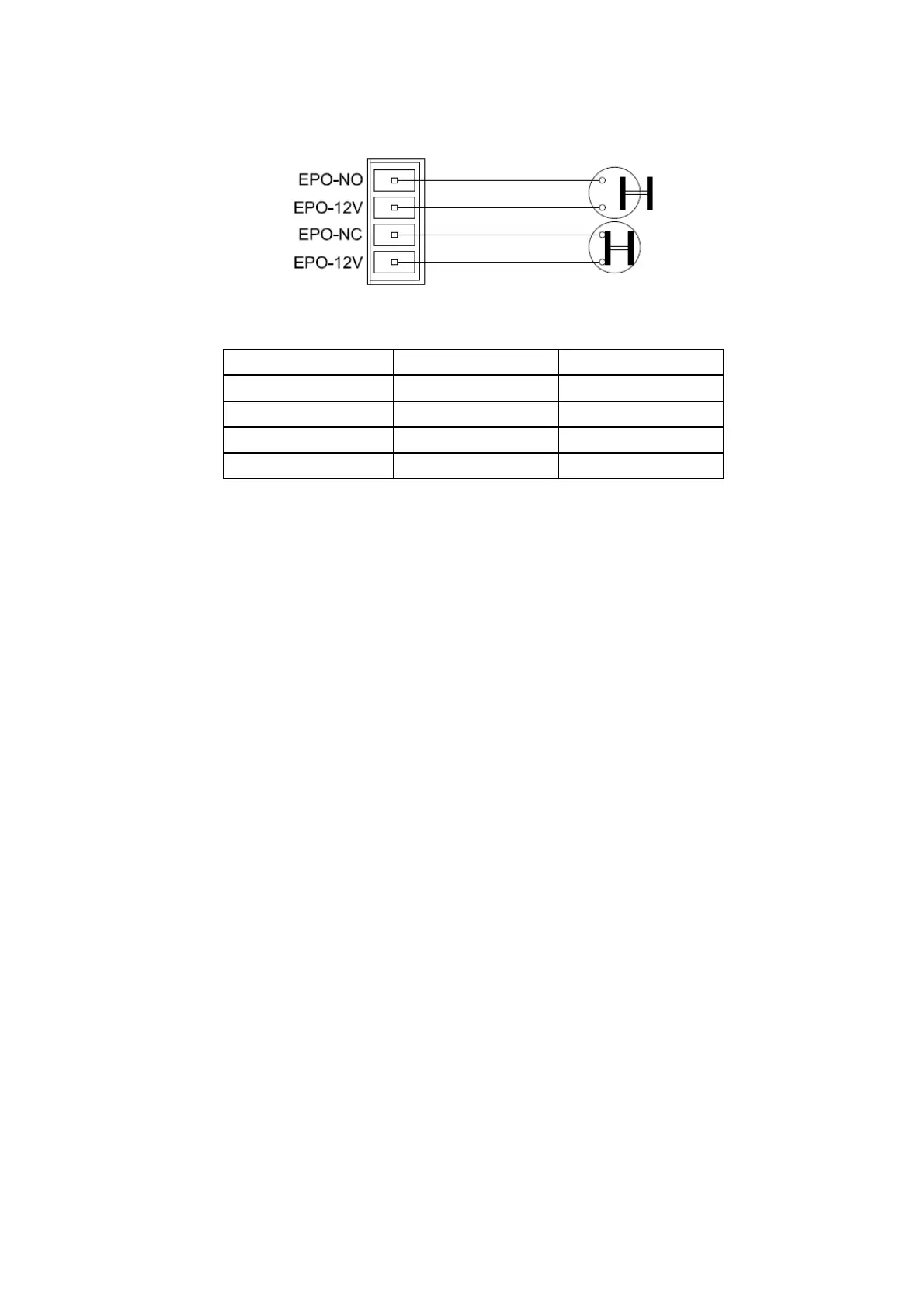

Connection diagram：
Connection between the button and UPS REPO port.
Button UPS REPO Description
Pin 1 Pin 1 EPO-NO
Pin 2 Pin 2 EPO-12V
Pin 1 Pin 3 EPO-NC
Pin 2 Pin 4 EPO-12V
◆A remote emergency stop switch can be installed in a remote location and connection through
simple wires to the REPO connector.
