-12-

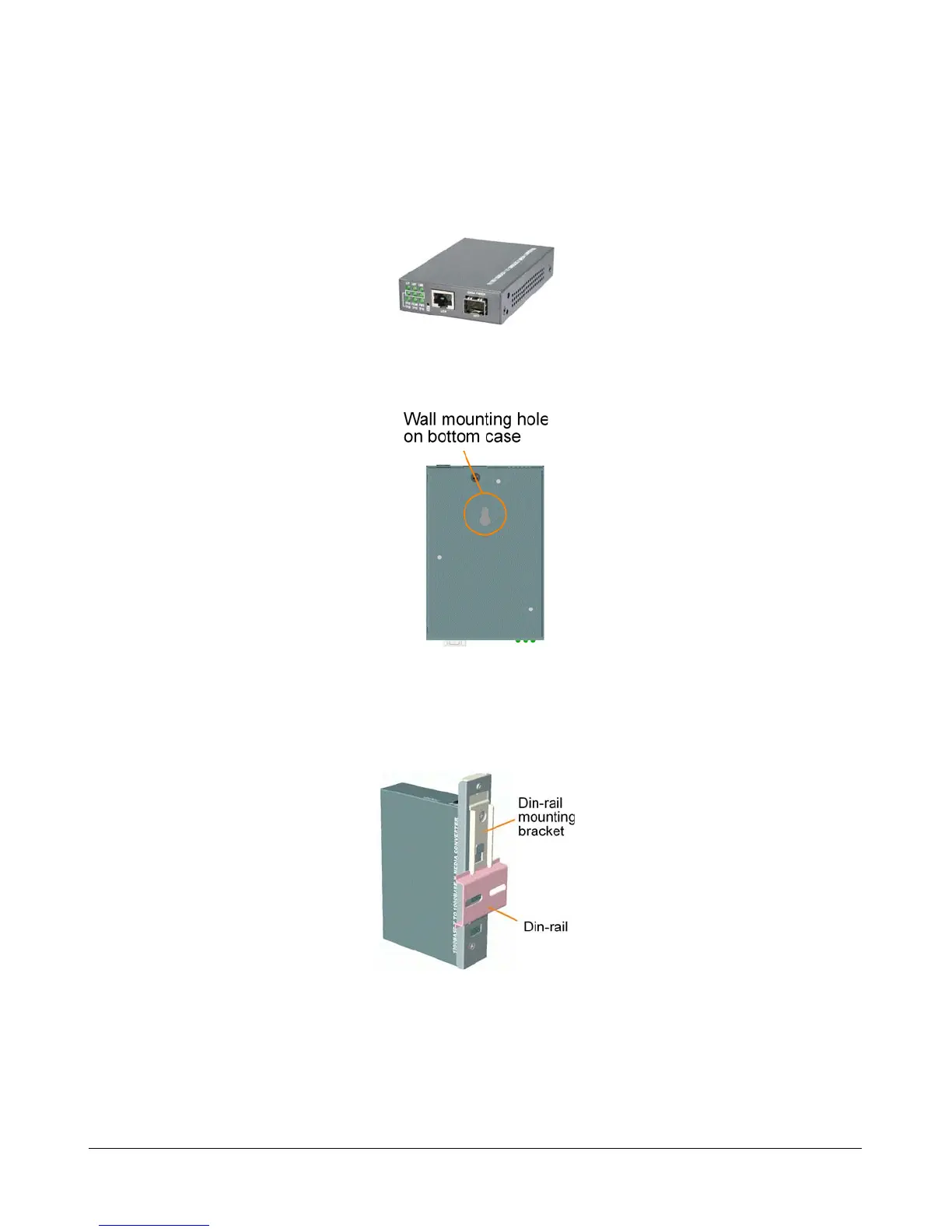

2.3 Mounting the Media Converter
The media converter can be mounted on a desktop or shelf or a wall. Make sure that there is proper
heat dissipation from and adequate ventilation around the device. Do not place heavy objects on the
device.
Desktop mounting
Wall mounting
The device has one mounting wall on the bottom side to support wall mounting.
Din-Rail mounting
For a Din-Rail chassis, the device can support mounting on a Din-Rail. An optional Din-Rail bracket,
KC-3DR can be purchased separately. The following figure shows an example after bracket installa-
tion:
To Next Page
