1.2 Product Panels

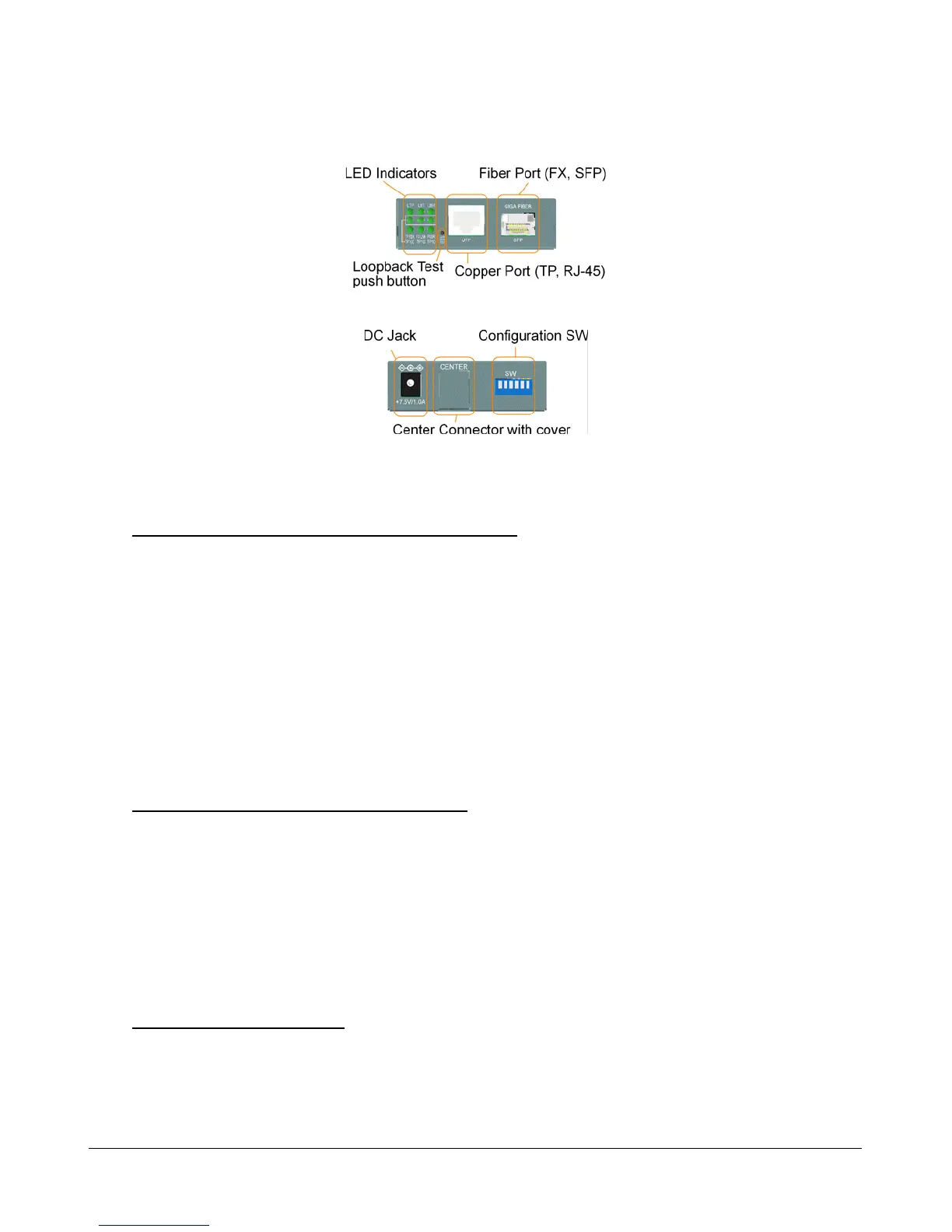

The following figure illustrates the front panel and rear panel of the device:
1.3 Specifications
10/100/1000 Twisted-pair Copper Port (TP, RJ-45)
Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3u 1000Base-T
Connectors Shielded RJ-45 jacks
Pin assignments Auto MDI/MDI-X detection
Configuration Auto-negotiation, manual settings or software control
Transmission rate 10Mbps, 100Mbps, 1000Mbps
Duplex support Full/Half duplex
Network cable Cat.5 UTP
1000Mbps Fiber Port (FX, Mini-GBIC SFP)
Compliance IEEE 802.3z 1000Base-SX/LX (mini-GBIC)
Connectors SFP for optional SFP type fiber transceivers
Configuration Auto/Forced, 1000Mbps, Full duplex
Transmission rate 1000Mbps
Network cables MMF 50/125 60/125, SMF 9/125
Eye safety IEC 825 compliant
Loopback Test Push Button
LOOPBACK TEST Push button to start loopback test
