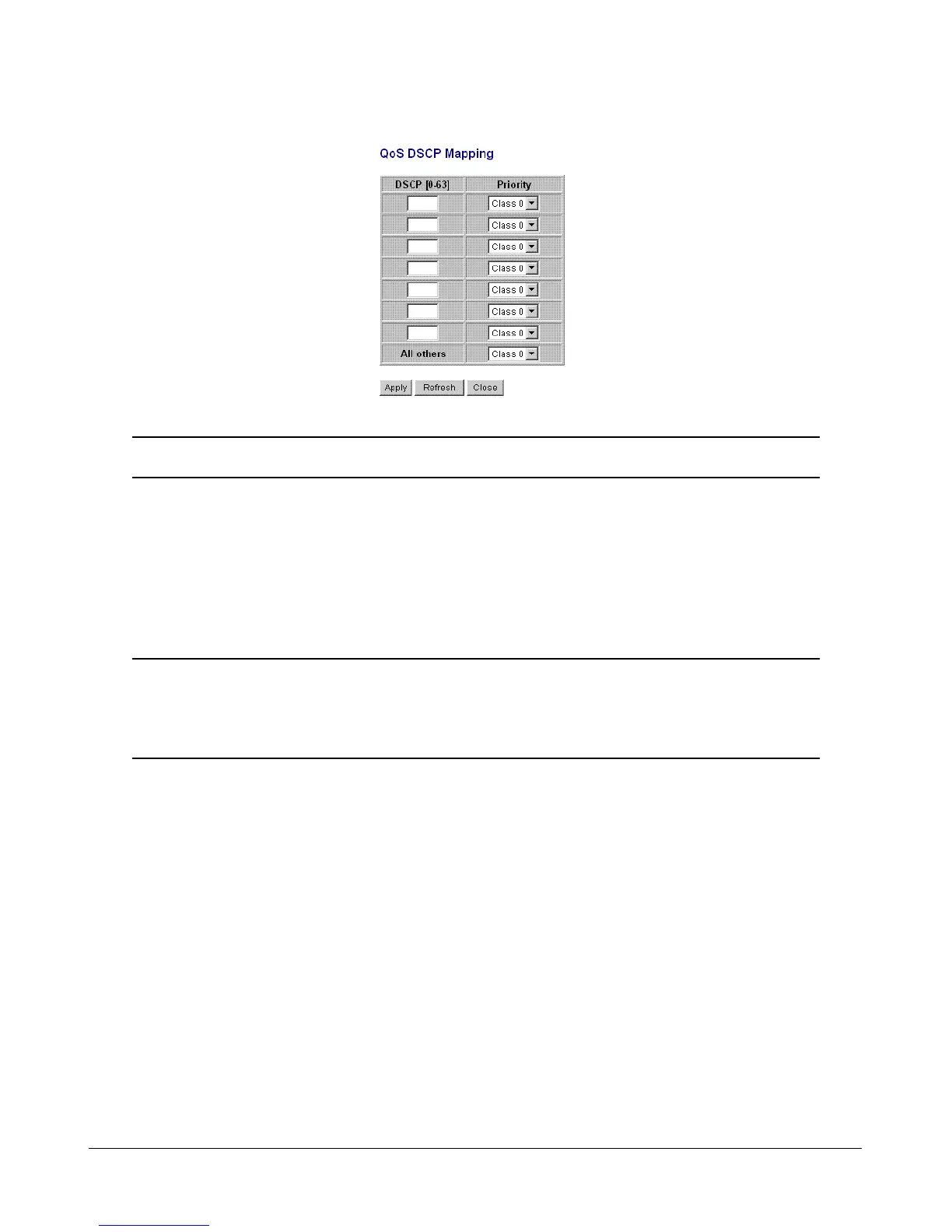

4.5.3 DSCP Mapping
Configuration Description
DSCP [0-63] Seven user-defined DSCP values which are configured with a priority class
0 ~ 63 - 6-bit DSCP value in decimal
Priority The priority class configured for the user-defined DSCP value
Class 3 ~ Class 0
All others The other DSCP values not in the seven user-defined values are assigned a
default priority class
Class 3 ~ Class 0
[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration
[Close] Click to close the window
Notes:
1. Only one DSCP mapping table is configured and applied to both ports.
2. The table is referred in DSCP priority classification for a received packet.
