-17-

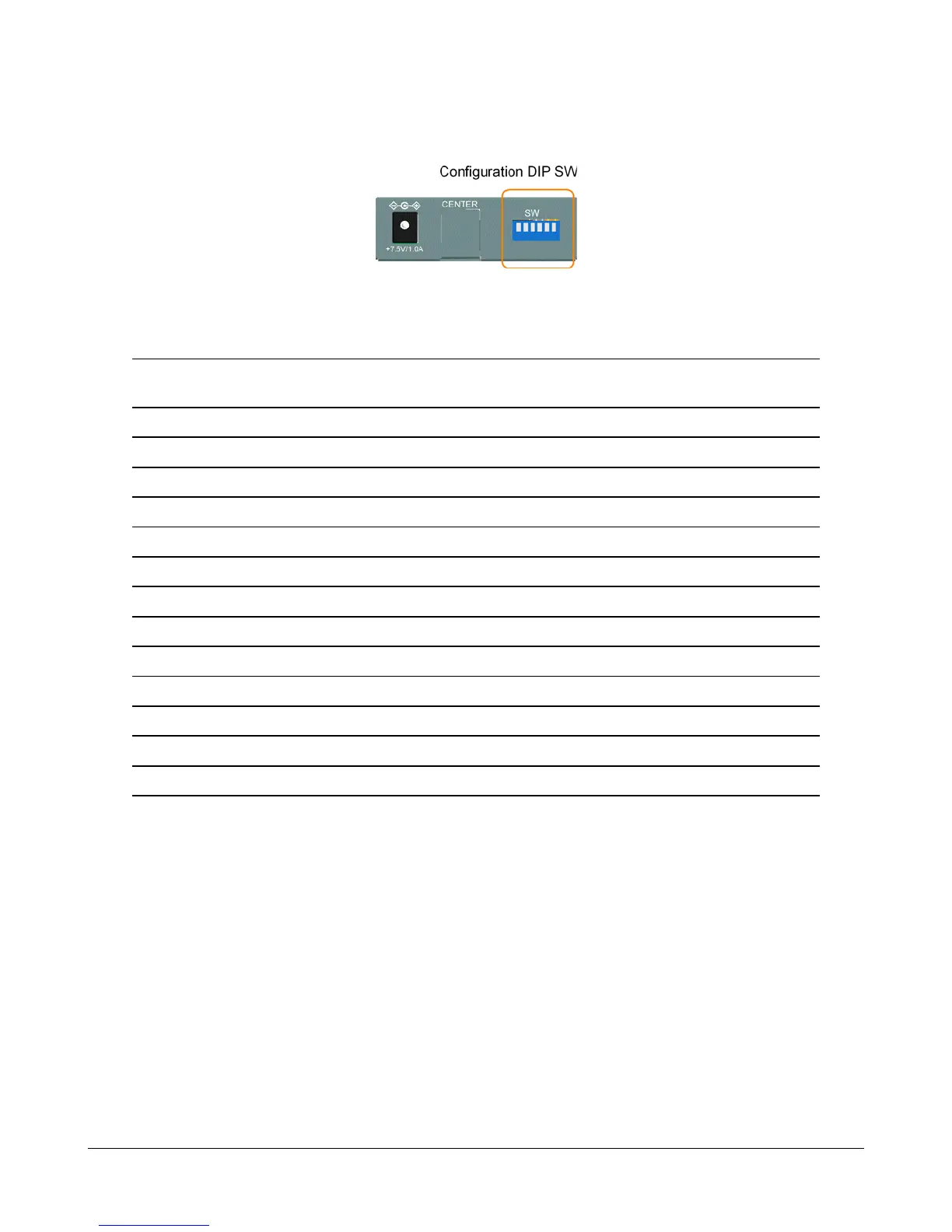

2.8 Configuration DIP SW
The configuration DIP SW (switches) are used for setting operation configuration manually.
The functions of each DIP SW states are:
SW1 SW2 SW3 SW4 SW5 SW6 Function
OFF OFF OFF ------ ------ ------ Ignore DIP SW6 SW5 SW4 settings
(Use software configuration for managed model)
ON OFF OFF ------ ------ ------ Set TP Port in non-auto, 10Mbps, Full duplex mode
OFF ON OFF ------ ------ ------ Set TP Port in non-auto, 10Mbps, Half duplex mode
ON ON OFF ------ ------ ------ Set TP Port in non-auto, 100Mbps, Full duplex mode
OFF OFF ON ------ ------ ------ Set TP Port in non-auto, 100Mbps, Half duplex mode
ON OFF ON ------ ------ ------ Set TP Port in auto, 1000Mbps, Full duplex mode
OFF ON ON ------ ------ ------ Disable TP Port function
ON ON ON ------ ------ ------ Set TP Port in auto, 10/100/1000Mbps, Half/Full duplex
------ ------ ------ OFF ------ ------ Enable flow control
------ ------ ------ ON ------ ------ Disable flow control
------ ------ ------ ------ OFF ------ Disable remote TP status auto-report function
------ ------ ------ ------ ON ------ Enable remote TP status auto-report on TP LEDs
------ ------ ------ ------ ------ OFF Disable Link Fault Pass Through function
------ ------ ------ ------ ------ ON Enable Link Fault Pass Through function
