KTM 125 DUKE 2021 - Adjusting the Shift Lever

TUNING THE CHASSIS 11
111
11.2 Adjusting the shift lever
Info
The adjustment range of the shift lever is limited.
F00734-10
–

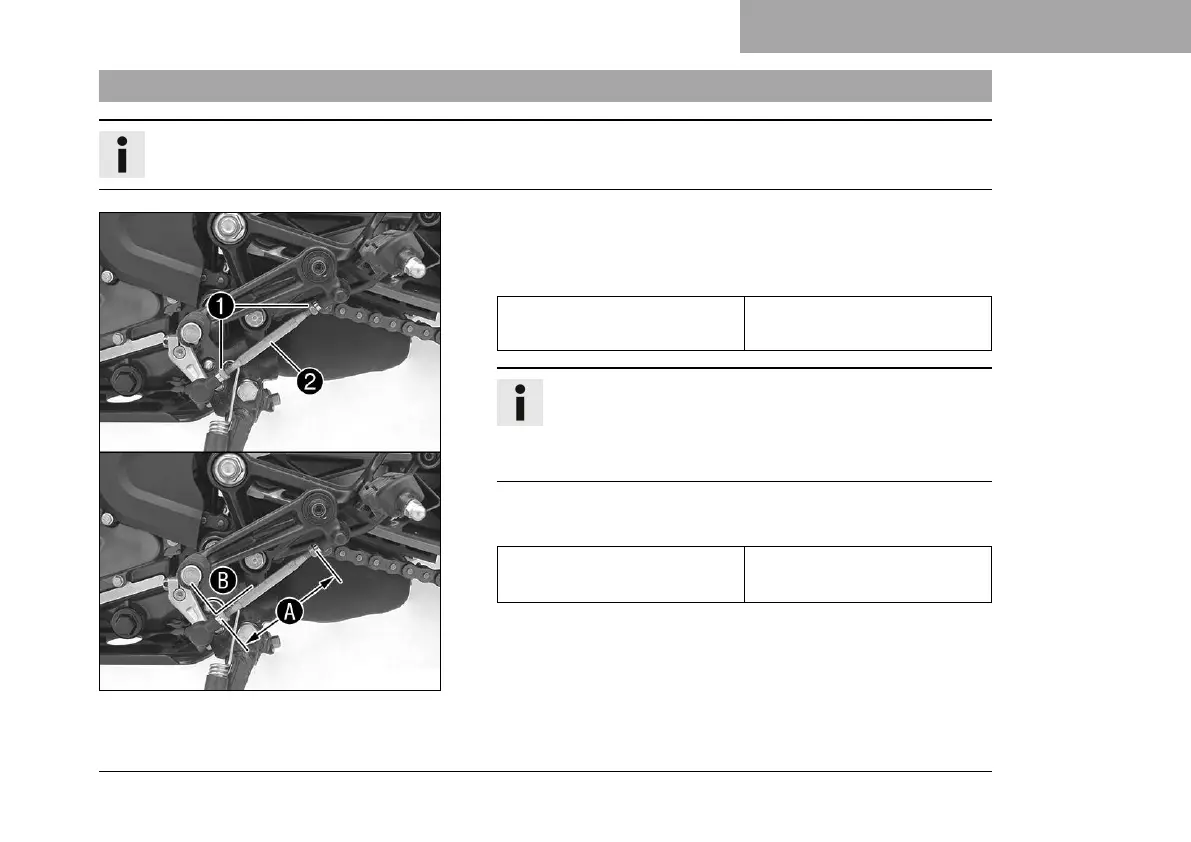

Loosen nuts
1
.
–
Adjust the shift lever by turning shift rod
2
.
Guideline
Shift rod adjustment
range
A
90 … 102 mm (3.54 …
4.02 in)
Info
Make the same adjustments on both sides.
At least five screw threads must be screwed into the
seating.
–
Check adjusting angle
B
.
Guideline
Adjusting angle
B
shift rod
- bell crank - shift lever
90°
–
Tighten nuts
1
.
