SERVICE WORK ON THE CHASSIS 12
129
F00752-10

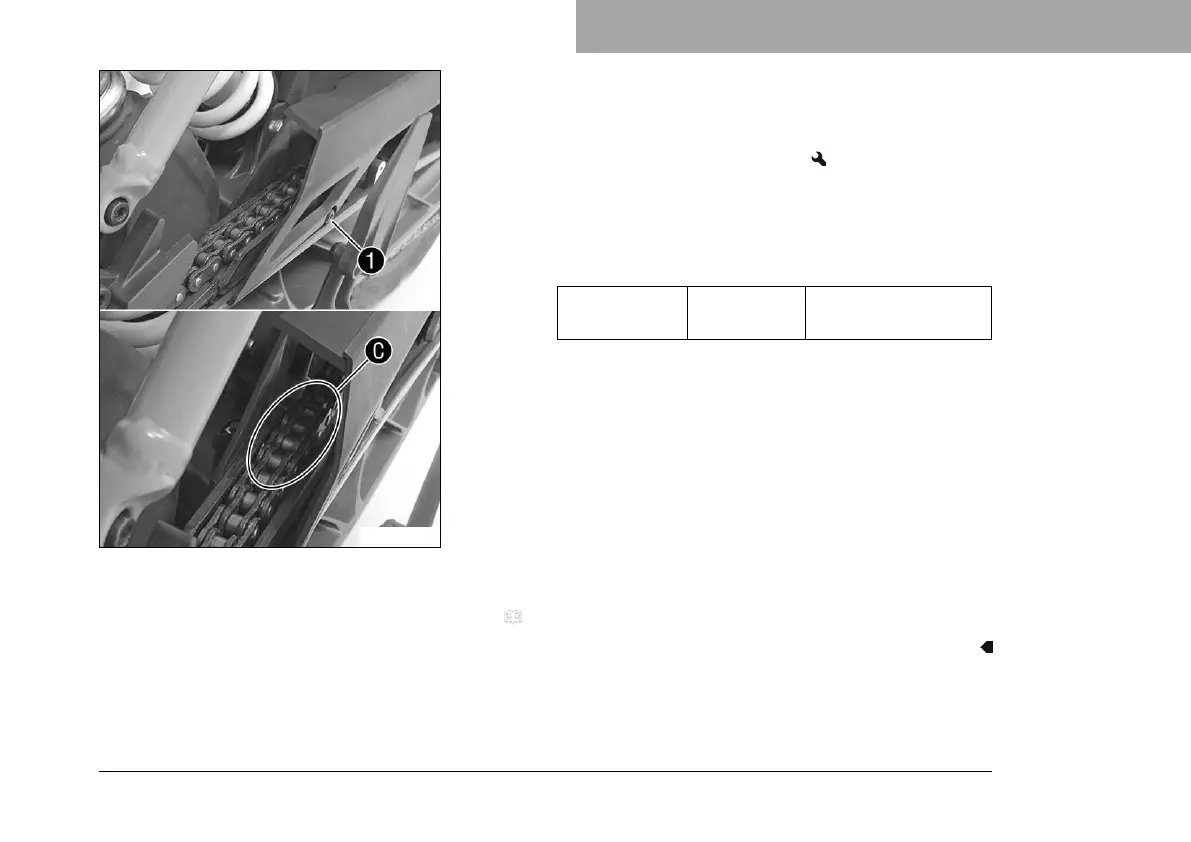

– Check the chain sliding guard for wear.
»
If screw
1
becomes visible in area
C
of the chain slid-
ing guard when viewed from above:
– Change the chain sliding guard.
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the screw of the chain sliding guard.
Guideline
Screw, chain
guard
M5 7 Nm (5.2 lbf ft)
Loctite
®
243™
Finishing work
– Remove the rear of the motorcycle from the lifting gear.
( p. 113)
