15 ELECTRICAL SYSTEM
176
S04728-10
Main work
–

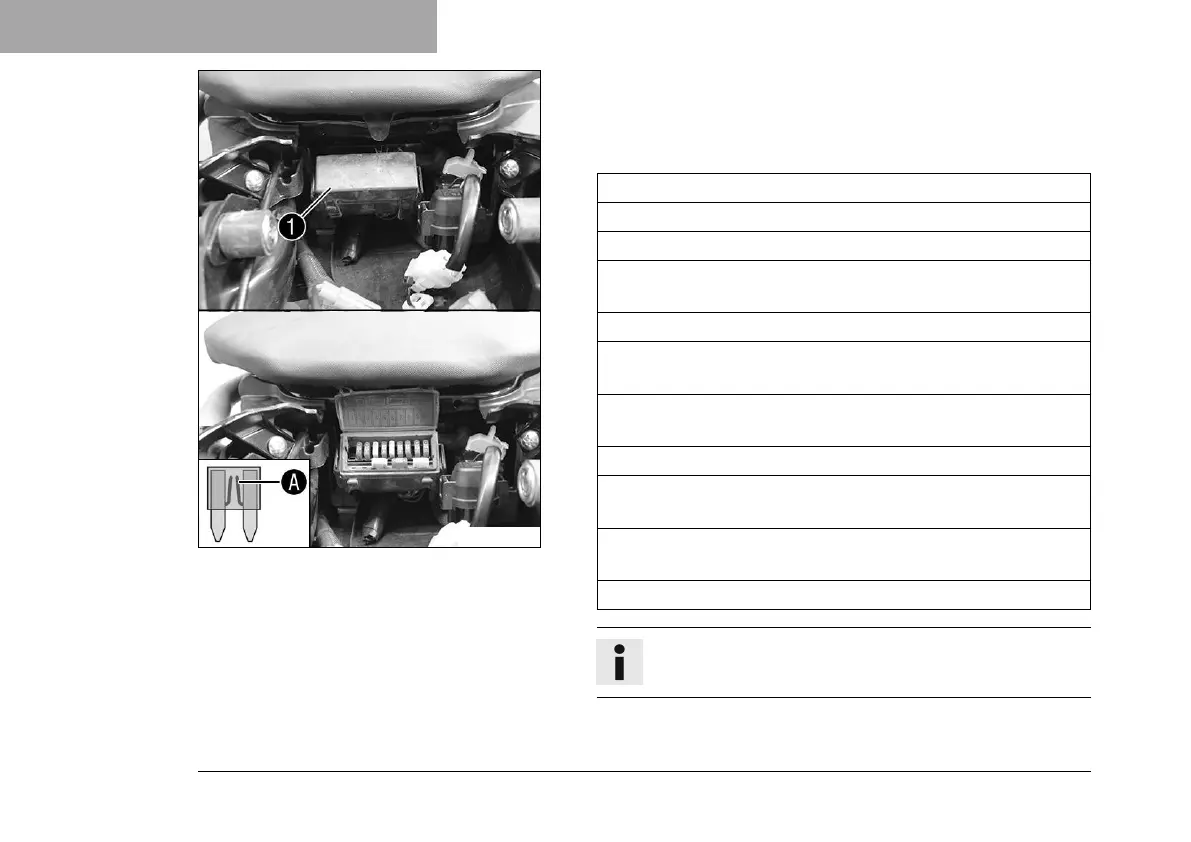

Open fuse box cover
1
.
– Remove the faulty fuse.
Guideline
Fuse 1 - not assigned
Fuse 2 - 10 A - dash
Fuse 3 - 10 A - power relay
Fuse 4 - 15 A - ignition coil, fuel pump, start auxiliary relay,
horn
Fuse 5 - 10 A - radiator fan
Fuse 6 - 15 A - brake light, turn signal, high beam, low
beam, position light, tail light, license plate lamp
Fuse 7 - 10 A - ABS control unit, dash, diagnostics connec-
tor
Fuse 8 - 10 A - emergency off
Fuse 9 - 10 A - permanent positive for auxiliary equipment
(ACC1 front)
Fuse 10 - 10 A - ignition positive for auxiliary equipment
(ACC2 front, ACC2 rear)
Fuse SPARE - 10 A/15 A/30 A - spare fuses
Info
A faulty fuse has a burned-out fuse wire
A
.
